Loga / tahy písma for BMW 7 Series E23 732i (1982)

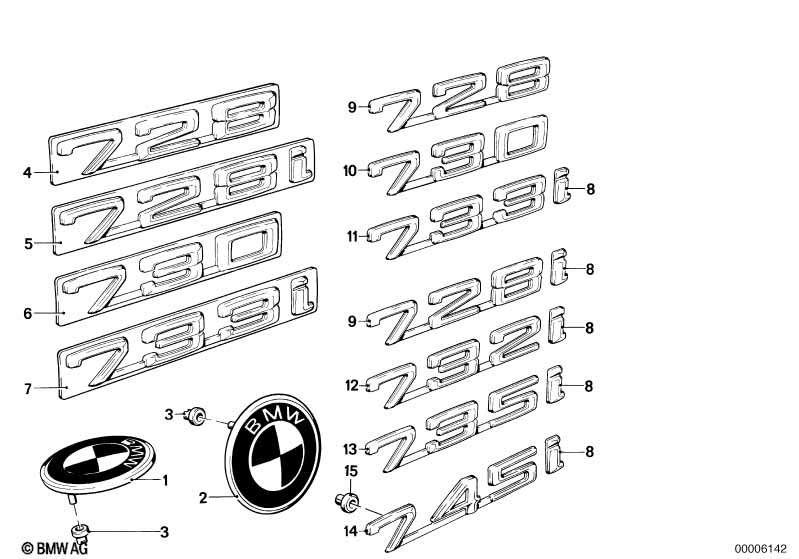

This Loga / tahy písma technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plaketa | Ø 82MM | 1 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Oprava nutná | ||||||||||
| 01 | Plaketa | Ø 82MM | 1 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Oprava nutná | ||||||||||
| -- | Průchodka | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 02 | Plaketa zadní výklopné dveře | 1 | 51141872328 | $35.82 | Shop at ECS Tuning | |||||
| 03 | Průchodka | 2 | 51141902279 | $0.62 | Shop at ECS Tuning | |||||
| 03 | Průchodka | 2 | 51141902279 | $0.62 | Shop at ECS Tuning | |||||
| vhodné pouze pro | ||||||||||
| -- | Zadní spoiler | X | 51711917436 | $320.38 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Logo lepené zadní | "I" | 1 | 51141916137 | $12.63 | Shop at ECS Tuning | ||||
| 12 | Logo lepené zadní | "732" | 1 | 11/1983 | 51141873100 | $35.45 | Shop at ECS Tuning | |||
Notes
- Ukončeno = Díl se již nevyrábí.
