Loga / tahy písma for BMW 7 Series E23 735i (1986)

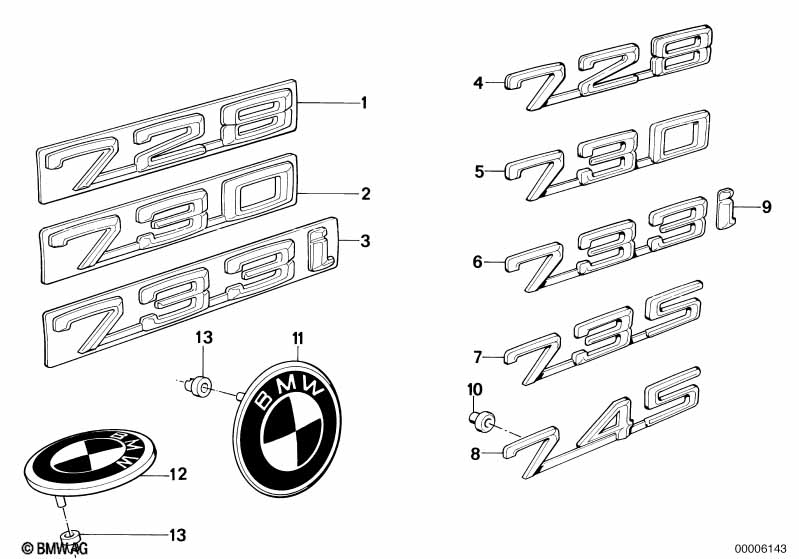

This Loga / tahy písma technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 07 | Logo lepené zadní | "735" | 1 | 01/1984 | 51141920782 | $22.33 | Shop at ECS Tuning | |||
| 09 | Logo lepené zadní | "I" | 1 | 01/1984 | 51141916137 | $12.63 | Shop at ECS Tuning | |||
| 10 | Průchodka | 8 | 51141849885 | $1.38 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Plaketa | Ø 82MM | 1 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Oprava nutná | ||||||||||
| -- | Průchodka | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 11 | Plaketa | Ø 82MM | 1 | 01/1984 | 51148132375 | $32.02 | Shop at ECS Tuning | |||
| Oprava nutná | ||||||||||
| -- | Průchodka | 2 | 01/1984 | 51141807495 | $0.68 | Shop at ECS Tuning | ||||
| 12 | Plaketa zadní výklopné dveře | 1 | 51141872328 | $35.82 | Shop at ECS Tuning | |||||
| 13 | Logo | ''BAVARIA'' | 1 | 51141815895 | UKONČENO | Shop at ECS Tuning | ||||
| 13 | Průchodka | 4 | 51141902279 | $0.62 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
