Loga / tahy písma for BMW 7 Series E23 733i (1979)

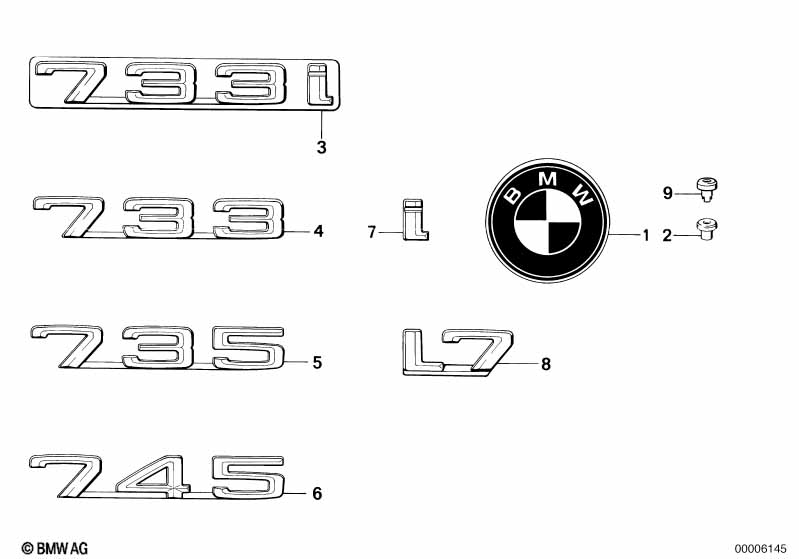

This Loga / tahy písma technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plaketa zadní výklopné dveře | 1 | 51141872328 | $35.82 | Shop at ECS Tuning | |||||
| 01 | BMW logo | D=82MM | 1 | 51145480181 | $41.58 | Shop at ECS Tuning | ||||
| 01 | Plaketa | Ø 82MM | 1 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Oprava nutná | ||||||||||
| -- | Průchodka | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 02 | Průchodka | 2 | 51141902279 | $0.62 | Shop at ECS Tuning | |||||
| 04 | Logo lepené zadní | "733" | 1 | 51141920781 | $35.45 | Shop at ECS Tuning | ||||
| 04 | Logo zástrčné zadní | "733" | 1 | 09/1978 | 51141869985 | $35.45 | Shop at ECS Tuning | |||
| 07 | Logo lepené zadní | "I" | 1 | 51141916137 | $12.63 | Shop at ECS Tuning | ||||
| 07 | Logo lepené zadní | "I" | 1 | 09/1978 | 51141916137 | $12.63 | Shop at ECS Tuning | |||
| 09 | Průchodka | 1 | 51141849885 | $1.38 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
