Loga / tahy písma for BMW 3 Series E30 323i (1986)

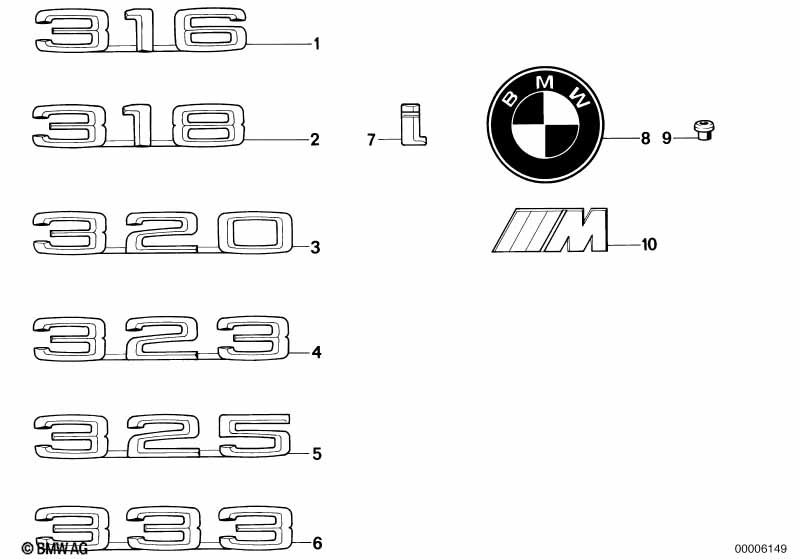

This Loga / tahy písma technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Logo lepené | "323" | 1 | 51141916135 | $32.20 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Logo lepené zadní | "I" | 1 | 51141916137 | $12.63 | Shop at ECS Tuning | ||||
| 08 | Plaketa zadní výklopné dveře | 1 | 51141872969 | $30.43 | Shop at ECS Tuning | |||||
| 08 | Plaketa | Ø 82MM | 1 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Oprava nutná | ||||||||||
| -- | Průchodka | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 09 | Průchodka | 4 | 51141902279 | $0.62 | Shop at ECS Tuning | |||||
| 10 | Písmeno „M“ zadní | 1 | 51141917739 | $37.00 | Shop at ECS Tuning | |||||
| 10 | Písmeno „M“ přední | 1 | 72601933569 | $35.32 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
