Obložení přístrojové desky for BMW 5 Series E28 524td (1985)

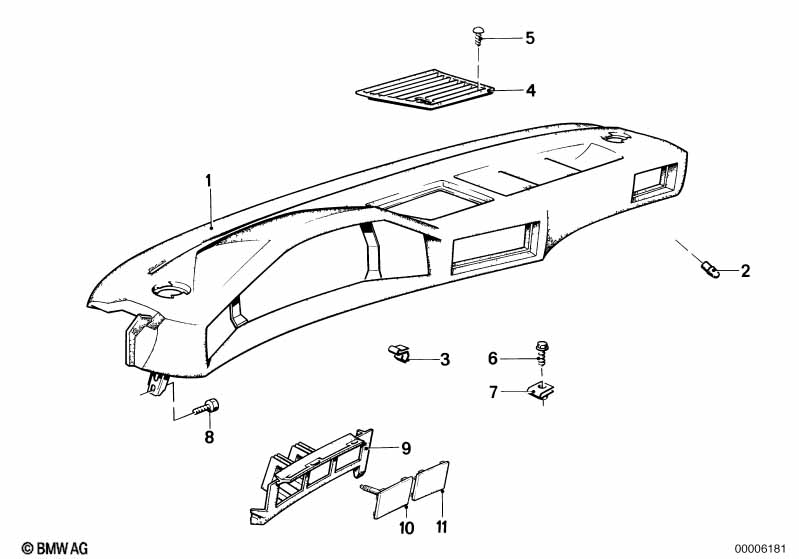

This Obložení přístrojové desky technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Obložení přístrojové desky | ANTHRAZIT | 1 | 51451872376 | $1288.26 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Obložení přístrojové desky | NUTRIA | 1 | 09/1984 | 51451929189 | $1288.26 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Obložení přístrojové desky | PINIENGRUEN | 1 | 09/1984 | 51451929190 | $694.71 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Pryžový doraz | 2 | 51451917675 | $0.50 | Shop at ECS Tuning | |||||
| 02 | Pryžový doraz | 2 | 51451936105 | $0.50 | Shop at ECS Tuning | |||||
| 03 | Svorka | 4 | 51451852827 | $0.97 | Shop at ECS Tuning | |||||
| 04 | Kryt | SCHWARZ | 1 | 51451874491 | $14.89 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Kryt | NUTRIA | 1 | 09/1984 | 51451929911 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Kryt | PINIENGRUEN | 1 | 09/1984 | 51451929912 | UKONČENO | Shop at ECS Tuning | |||
| Pro vozidla s Klimatizace |
=Ano |
|||||||||
| 04 | Kryt | SCHWARZ | 1 | 51451943680 | $14.89 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Kryt | NUTRIA | 1 | 51451943681 | $10.94 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Kryt | PINIENGRUEN | 1 | 51451943682 | $10.94 | UKONČENO | Shop at ECS Tuning | |||
| 05 | Samořezný šroub s čočkovou hlavou | ST2,9X16 | 2 | 07119907963 | $0.07 | Shop at ECS Tuning | ||||
| 06 | Šestihranný šroub na plech | ST4,8X16-C-Z1 | 1 | 07119916945 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Šestihranný šroub na plech | ST4,8X16-C-Z1 | 1 | 07119906265 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Zástrčná matice | M5 | 1 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 08 | Šestihranný šroub | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 09 | Uchycení spínače | 1 | 51451879533 | $14.88 | Shop at ECS Tuning | |||||
| 11 | Slepý uzávěr | 1 | 63121367925 | $53.79 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
