Podložka pro SPZ for BMW 8 Series E31 850Ci (1994)

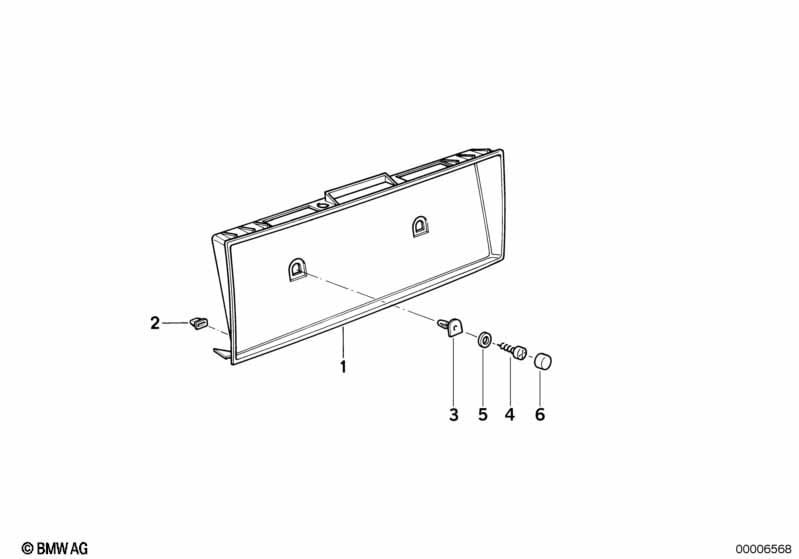

This Podložka pro SPZ technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clona zadní | 1 | 51131970559 | $58.11 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Výplň | 10X7 | 3 | 51131870459 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Zástrčná matice | 2 | 51131961243 | $0.65 | Shop at ECS Tuning | |||||
| 03 | Zástrčná matice | 2 | 51181852299 | $0.23 | Shop at ECS Tuning | |||||
| 04 | Samořezný šroub s čočkovou hlavou | ST4,8X16MM | 2 | 07143448498 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Okno | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 06 | Odnímatelný kryt | WEISS | 2 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 06 | Odnímatelný kryt | SCHWARZ | 2 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 06 | Odnímatelný kryt | DUNKELBLAU | 2 | 64111375497 | $0.20 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Podložka pro SPZ?
- This technical diagram illustrates the Podložka pro SPZ within the Výbava vozidla group for the 8 Series E31 850Ci produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Clona zadní (Part #51131970559).
- Which models use the hardware listed in this Podložka pro SPZ?
- The hardware and components featured in the Podložka pro SPZ are specific to the 8 Series E31 850Ci produced during 1994. These technical specifications ensure that parts like the Clona zadní (51131970559) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Podložka pro SPZ assembly?
- Each item in the Podložka pro SPZ corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Clona zadní by locating its position on the schematic, which then links to the official BMW part number 51131970559 for the Výbava vozidla section.
