Zasklení montážní díly for BMW 7 Series E32 750iLS (1994)

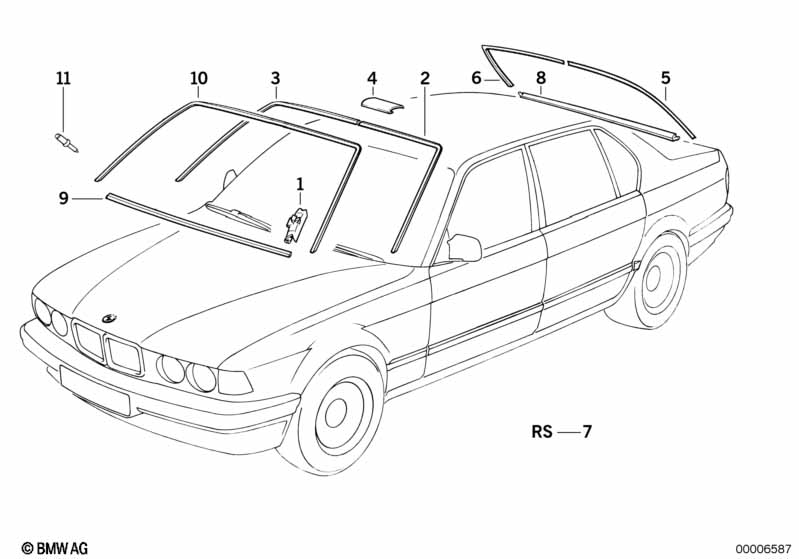

This Zasklení montážní díly technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Svorka | X | 51318131455 | $16.85 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Ozdobný rám levý | 1 | 10/1991 | 51318114543 | $98.74 | Shop at ECS Tuning | ||||
| 03 | Ozdobný rám pravý | 1 | 10/1991 | 51318114544 | $98.74 | Shop at ECS Tuning | ||||
| 04 | Manžeta | 2 | 51311908645 | $11.90 | Shop at ECS Tuning | |||||
| 04 | Manžeta | 1 | 51318136032 | $9.91 | Shop at ECS Tuning | |||||
| 05 | Ozdobný rám levý | 1 | 51311938533 | $98.74 | Shop at ECS Tuning | |||||
| 06 | Ozdobný rám pravý | 1 | 51311938534 | $98.74 | Shop at ECS Tuning | |||||
| 07 | Opravná sada přední a zadní sklo | 1 | 51318109588 | $191.95 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Kryt | 1 | 51311957040 | $32.81 | Shop at ECS Tuning | |||||
| 09 | Pryžové uložení | 1 | 51451928022 | $21.52 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Rám | 1 | 51319068532 | $968.13 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Nýt | X | 51318105549 | $0.18 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | LEPIDLO | 300G | 1 | 51141886609 | UKONČENO | Shop at ECS Tuning | ||||
| 13 | Lepicí páska | 1 | 51318141610 | $76.45 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
