Výměna zámků for BMW R45-R65LS..78-85 R65LS (1983)

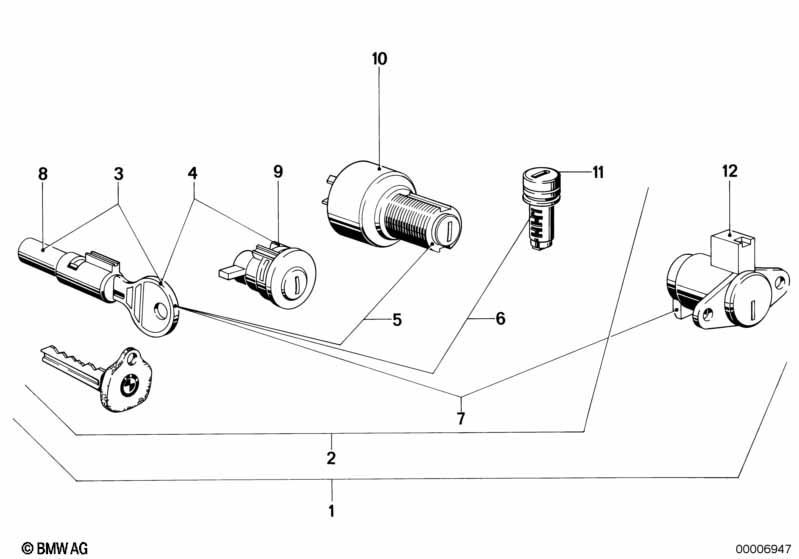

This Výměna zámků technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Výměna zámků | 1 | 51251243605 | UKONČENO | Shop at ECS Tuning | |||||
| 03 | Zámek řízení | 1 | 51251243274 | $32.88 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 04 | Dual seat lock | 1 | 51251243277 | $54.73 | +core | Shop at ECS Tuning | ||||
| 06 | Vložka zámku s klíčem | 1 | 51252307166 | $30.85 | UKONČENO, +core | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Uzavírací víko nádrže | 1 | 51252307125 | $168.44 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 08 | Zámek řízení | CODE | 1 | 51251243499 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 09 | Dual seat lock | CODE | 1 | 51251243500 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Spínač světel a zapalování | CODE | 1 | 51251243607 | $127.54 | UKONČENO, +core | Shop at ECS Tuning | |||
| 11 | Vložka zámku uzávěr paliv.nádrže s kódem | 1 | 51252307173 | +core | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Uzavírací víko nádrže | 1 | 51252307125 | $168.44 | UKONČENO, +core | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
