Lakované díly 551 světle červené for BMW R45-R65LS..78-85 R45 (1978)

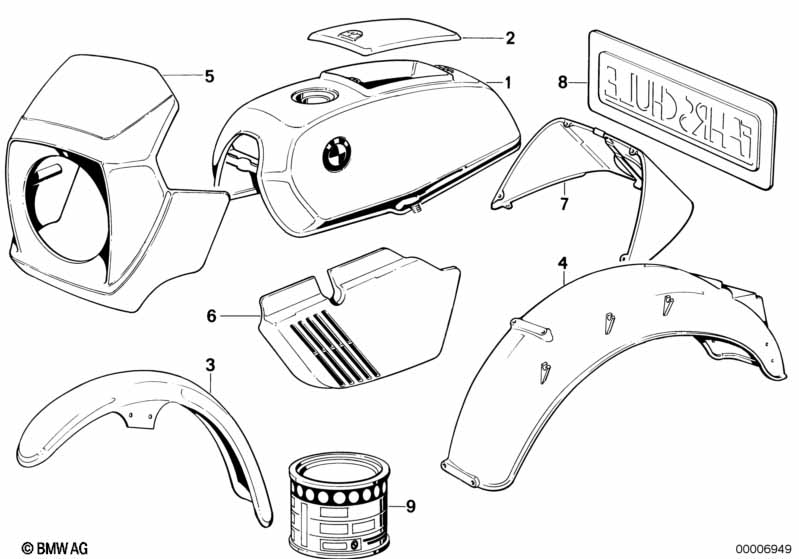

This Lakované díly 551 světle červené technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ozdobná linka zlatá | |||||||||
| 01 | Palivová nádrž | HELLROT | 1 | 16111238726 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Víko skříňka na nářadí | HELLROT | 1 | 16111238780 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Blatník přední | HELLROT | 1 | 46611238769 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Obložení interiéru | HELLROT | 1 | 46631240824 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Kryt akumulátoru levý | HELLROT | 1 | 46631238791 | $31.25 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Kryt akumulátoru pravý | HELLROT | 1 | 46631238802 | $71.42 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Zadní díl | HELLROT | 1 | 52531238756 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Štítek s upozorněním | 1 | 72609055500 | UKONČENO | Shop at ECS Tuning | |||||
| 09 | Ruling ink gold | 250ML 104 | X | 51911234230 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Metalický lak sada světle červený | 250ML 050 | X | 51911240282 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Metalický lak sada světle červený | 1000ML 050 | X | 51911240283 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
