Lakované díly 596 algerien-blau for BMW R45-R65LS..78-85 R45 (1978)

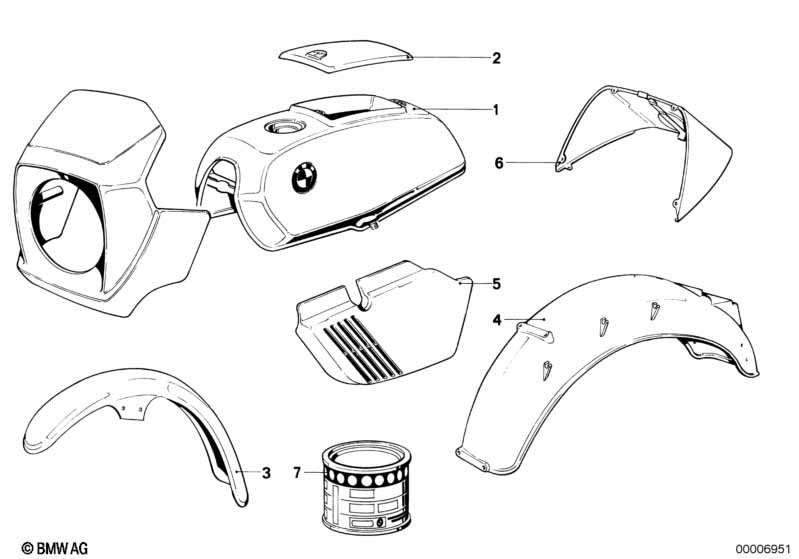

This Lakované díly 596 algerien-blau technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ozdobná linka bílá Lak algerienblau 096 |
|||||||||
| Pro vozidla s Úřední provedení |
=Ano |
|||||||||
| 01 | Palivová nádrž | ALGERIENBLAU | 1 | 16111238722 | UKONČENO | Shop at ECS Tuning | ||||
| 01 | Palivová nádrž se skříní | ALGERIENBLAU | 1 | 16111238737 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Víko skříňka na nářadí | ALGERIENBLAU | 1 | 16111238776 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Blatník přední | ALGERIENBLAU | 1 | 46611238765 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Blatník zadní | ALGERIEN BLAU | 1 | 46621239852 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Kryt akumulátoru levý | ALGERIENBLAU | 1 | 46631238787 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Kryt akumulátoru pravý | ALGERIENBLAU | 1 | 46631238798 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | HS Akrylátový lak algerienblau | 250ML 096 | X | 51912351689 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | HS Akrylátový lak algerienblau | 1000ML 096 | X | 51912351690 | UKONČENO | Shop at ECS Tuning | ||||
| Pro vozidla s Úřední provedení |
=Ano |
|||||||||
| 07 | Ruling ink white | 250ML 101 | X | 51911240265 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
