Větrací okénko for BMW 1502-2002tii 2002 (1974)

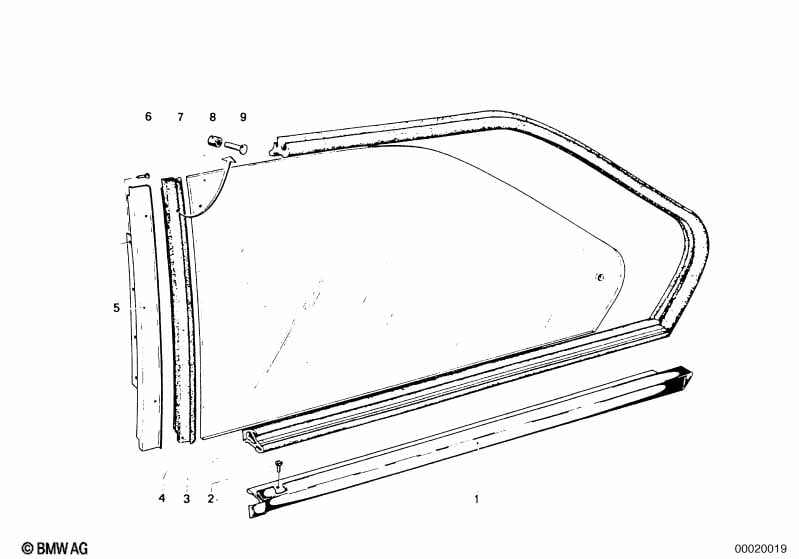

This Větrací okénko technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Nýt | 3,2-3A | 8 | 07129948742 | $0.11 | UKONČENO | Shop at ECS Tuning | |||
| 05 | Závěs | 2 | 51367441109 | $65.86 | Shop at ECS Tuning | |||||
| 06 | Samořezný šroub s čočkovou hlavou | ST3,5X6,5 | 8 | 07119907774 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Pouzdro | 2 | 51367041739 | $1.92 | Shop at ECS Tuning | |||||
| 09 | Klín | 3,2X18 | 2 | 07119945193 | $0.09 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Větrací okénko?
- This technical diagram illustrates the Větrací okénko within the Výbava vozidla group for the 1502-2002tii 2002 produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Nýt (Part #07129948742).
- Which models use the hardware listed in this Větrací okénko?
- The hardware and components featured in the Větrací okénko are specific to the 1502-2002tii 2002 produced during 1974. These technical specifications ensure that parts like the Nýt (07129948742) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Větrací okénko assembly?
- Each item in the Větrací okénko corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Nýt by locating its position on the schematic, which then links to the official BMW part number 07129948742 for the Výbava vozidla section.
