Větrací okénko for BMW 1502-2002tii 1802 (1973)

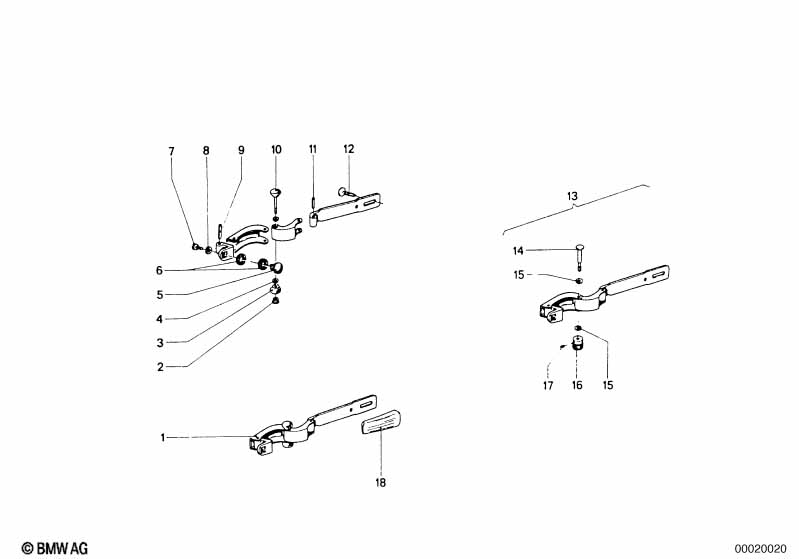

This Větrací okénko technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1802. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 05 | Matice | 2 | 51367041561 | $7.77 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Těsnění | 4 | 51367040572 | $0.19 | Shop at ECS Tuning | |||||
| 07 | Šroub s čočkovitou hlavou | M5X8 | 2 | 07119907623 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Pružný kroužek | B5 | 2 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Šroub | 2 | 51367441142 | $54.30 | Shop at ECS Tuning | |||||
| 13 | Držák levý | SCHWARZ | 1 | 08/1973 | 07/1977 | 51361827405 | $49.37 | UKONČENO | Shop at ECS Tuning | |

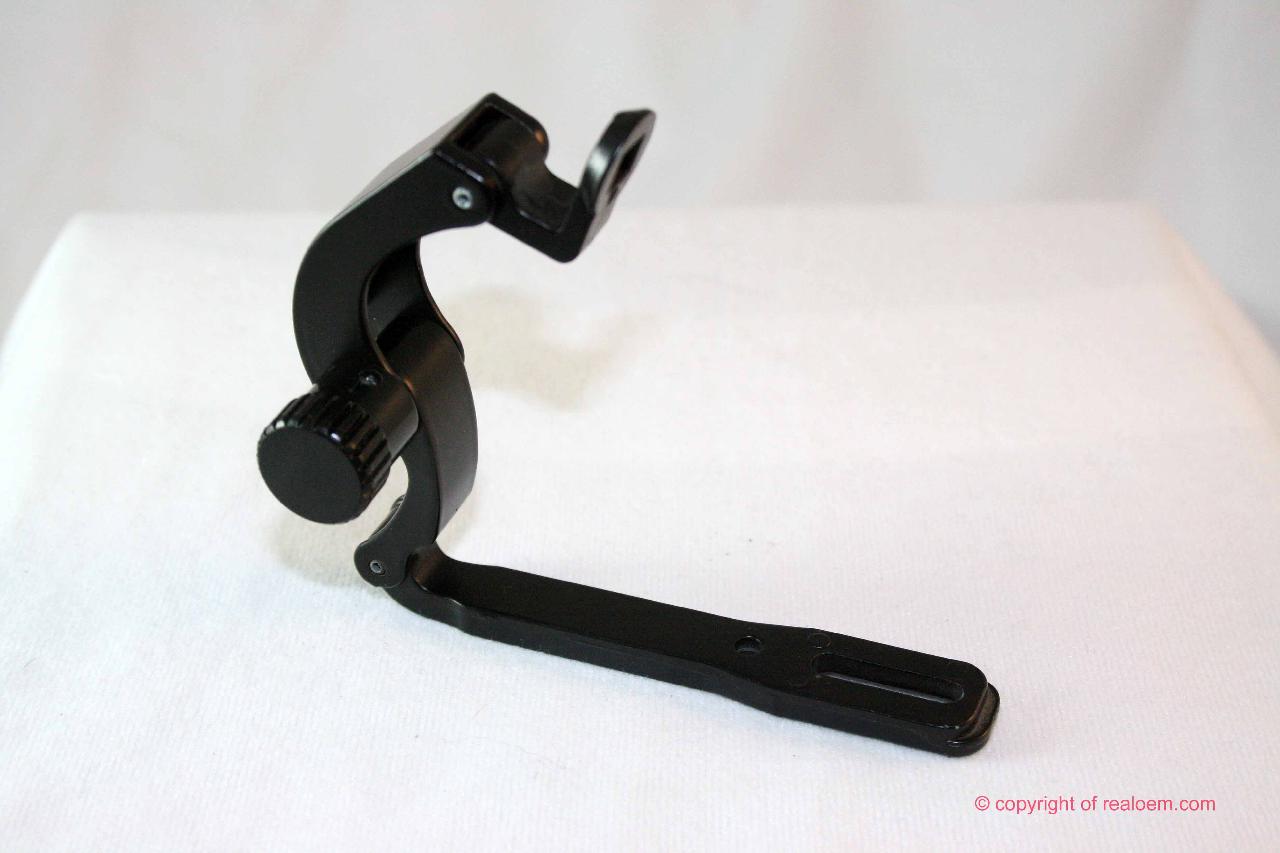

| 13 | Držák pravý | SCHWARZ | 1 | 08/1973 | 07/1977 | 51361827406 | $49.37 | UKONČENO | Shop at ECS Tuning | |
| 14 | Čep | 2 | 08/1973 | 07/1977 | 51361822916 | UKONČENO | Shop at ECS Tuning | |||
| 15 | Podložka | 4 | 08/1973 | 07/1977 | 51361822919 | $1.10 | Shop at ECS Tuning | |||
| 16 | Knoflík | 2 | 08/1973 | 07/1977 | 51361822920 | $5.63 | UKONČENO | Shop at ECS Tuning | ||
| 17 | Závitový kolík | M3X5 | 2 | 08/1973 | 07/1977 | 07119904516 | UKONČENO | Shop at ECS Tuning | ||
| 18 | Odnímatelný kryt | 2 | 08/1973 | 07/1977 | 51361817671 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
