Ozdobné lišty for BMW 1502-2002tii 2002tii (1973)

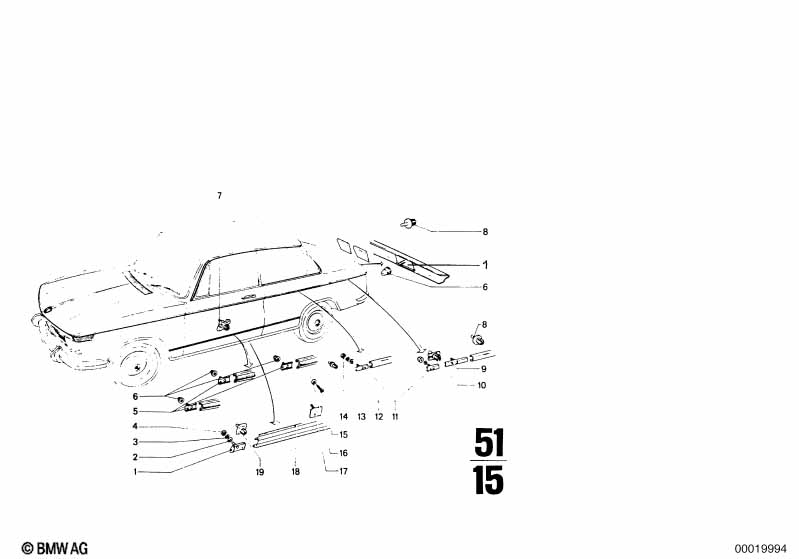

This Ozdobné lišty technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

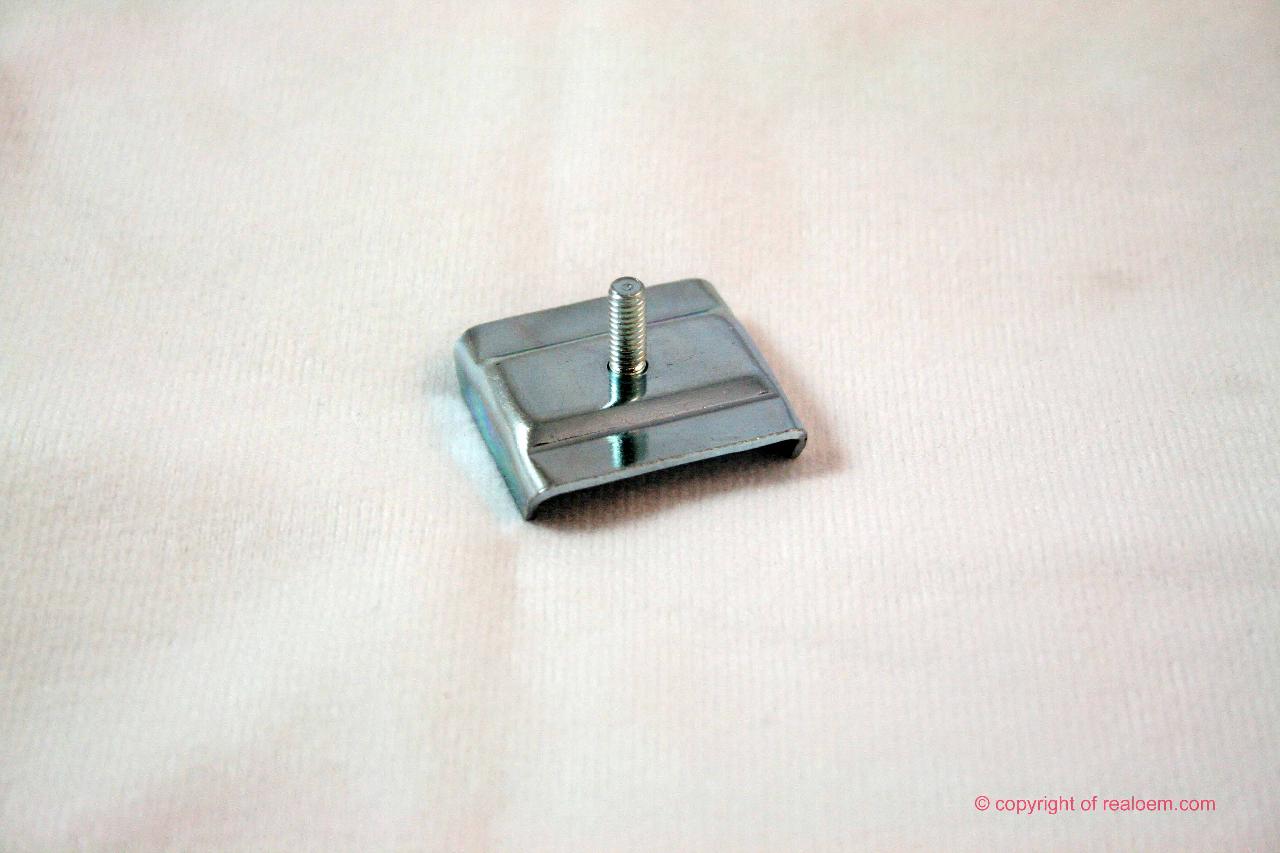

| 01 | Lištové šrouby | 7 | 51136440145 | $6.21 | Shop at ECS Tuning | |||||
| 02 | Okno | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 03 | Pružný kroužek | B4 | 2 | 07119933034 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Šestihranná matice | M4-A2-70 | 2 | 07119922854 | Shop at ECS Tuning | |||||

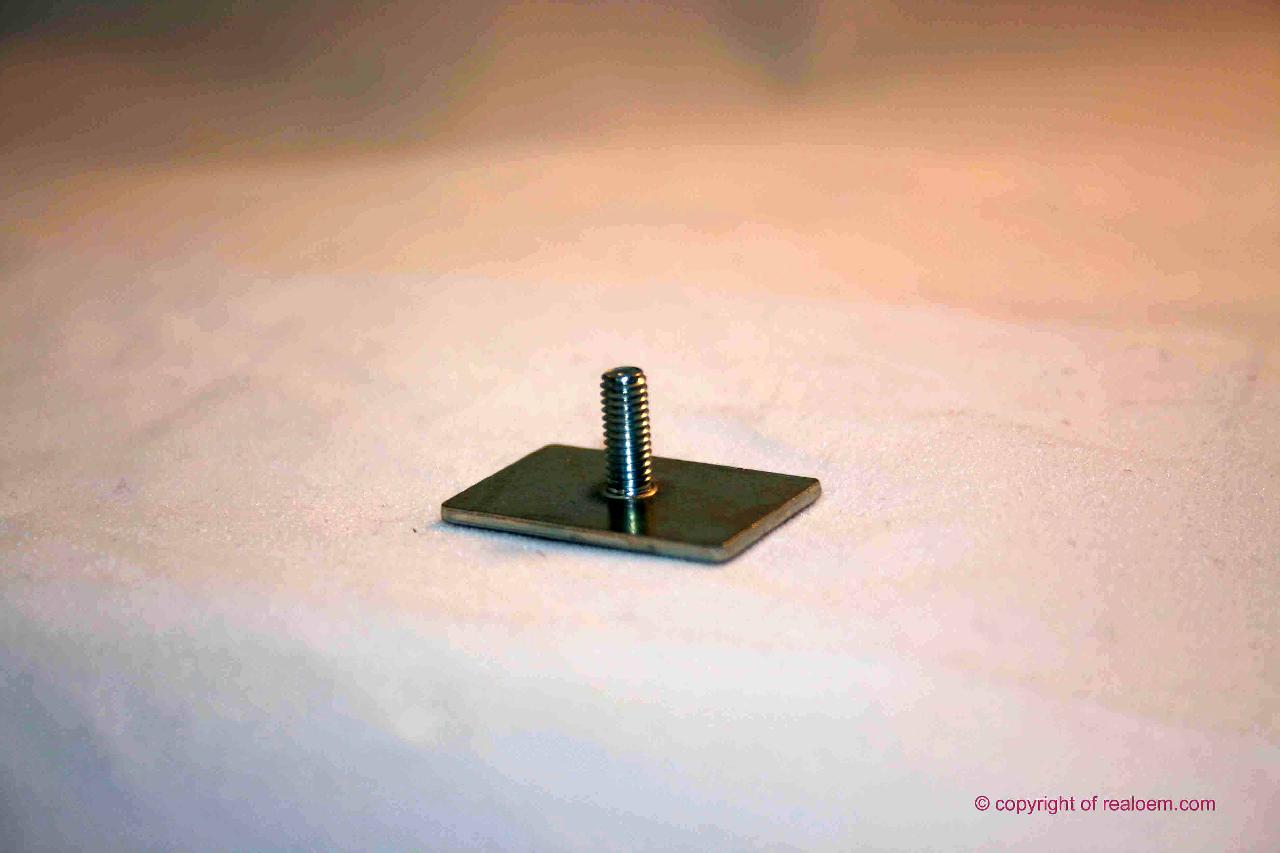

| 05 | Lištové šrouby | M4 | 8 | 03/1971 | 07/1977 | 51131816046 | $4.10 | Shop at ECS Tuning | ||
| 06 | Uzavřená matice | M4 | 13 | 03/1966 | 07/1977 | 41335480120 | $0.20 | Shop at ECS Tuning | ||
| 07 | Svorka | 14 | 03/1971 | 07/1977 | 51131816019 | $1.10 | Shop at ECS Tuning | |||
| 08 | Svorka | X | 51135480112 | $0.90 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Svorka | 5 | 08/1973 | 07/1977 | 51131829651 | $1.10 | Shop at ECS Tuning | |||

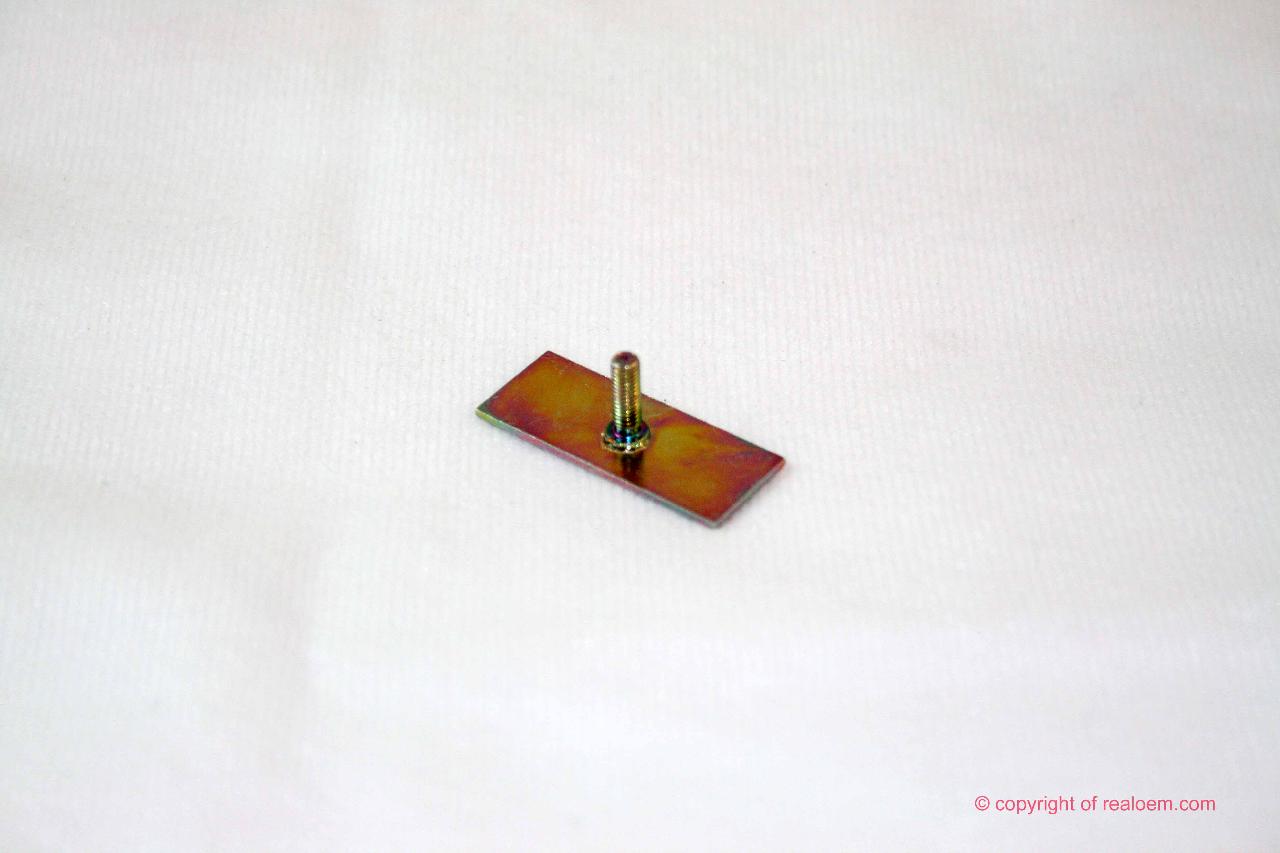

| 09 | Lištové šrouby | 30 MM | 4 | 03/1966 | 07/1976 | 51135480117 | $3.08 | Shop at ECS Tuning | ||

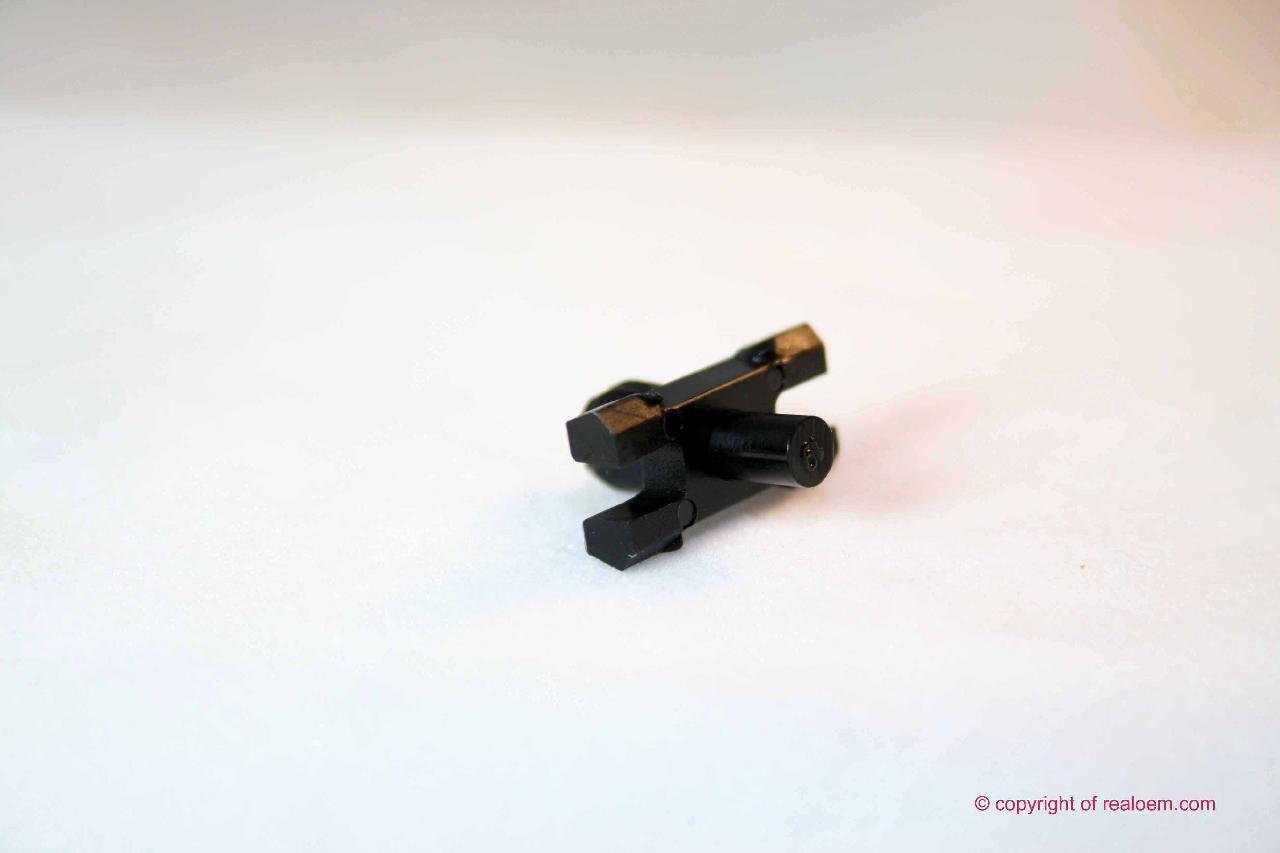

| 10 | Svorka | 41 | 03/1966 | 07/1976 | 51131804205 | $1.71 | Shop at ECS Tuning | |||
| 11 | Lištové šrouby | 13 MM | 12 | 03/1966 | 07/1976 | 51135480116 | $3.08 | Shop at ECS Tuning | ||
| 12 | Podložka | A3,2 | 16 | 03/1966 | 07/1976 | 07119931015 | $0.09 | Shop at ECS Tuning | ||
| 13 | Pružný kroužek | B3 | 16 | 03/1966 | 07/1976 | 07119933017 | $0.13 | Shop at ECS Tuning | ||
| 14 | Šestihranná matice | M3 | 16 | 03/1966 | 07/1976 | 07119922016 | $0.09 | Shop at ECS Tuning | ||
| 18 | Okolek | VORNE | 2 | 51726440147 | $19.31 | Shop at ECS Tuning | ||||

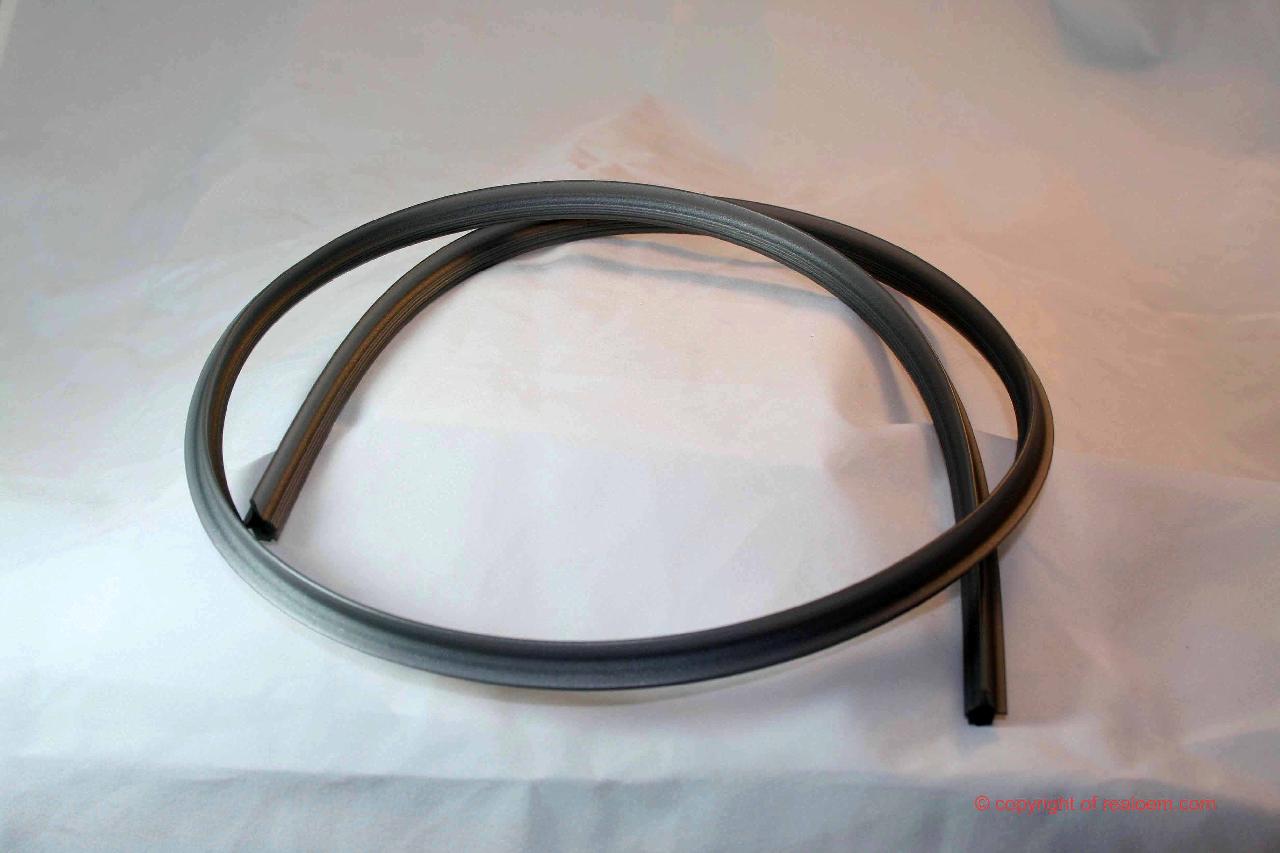

| 18 | Okolek | MITTE | 2 | 51726440148 | $19.31 | Shop at ECS Tuning | ||||
| 18 | Okolek | HINTN | 2 | 51726440149 | $16.17 | Shop at ECS Tuning | ||||
| 19 | Svorka | 14 | 51131829904 | $0.42 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
