Dveřní okno for BMW 2500-3.3Li 3.0S (1974)

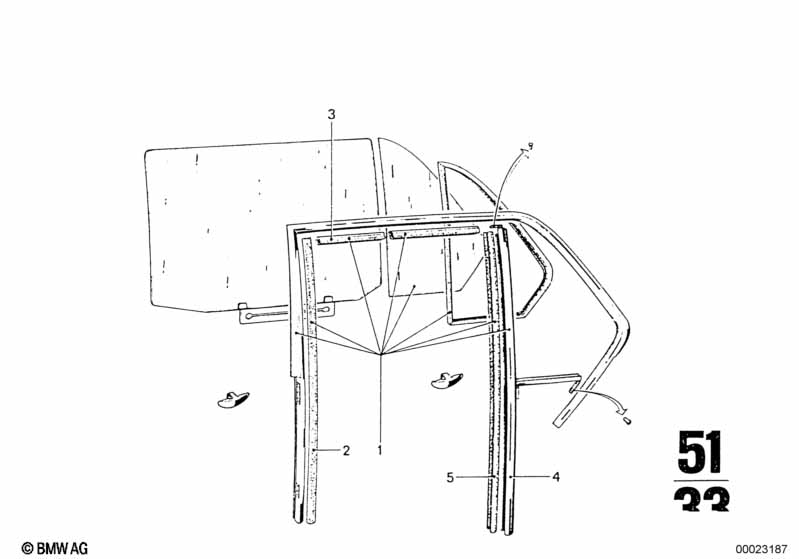

This Dveřní okno technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pozdější provedení | ||||||||||
| 01 | Okenní rám zadní levý | 1 | 04/1969 | 02/1977 | 51341821101 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Okenní rám zadní pravý | 1 | 04/1969 | 02/1977 | 51341821102 | $324.76 | UKONČENO | Shop at ECS Tuning | ||
| Dřívější provedení | ||||||||||
| 02 | Vedení okna přední | X | 51326654262 | $68.24 | Shop at ECS Tuning | |||||
| 02 | Vedení okna přední | X | 51326654262 | $68.24 | Shop at ECS Tuning | |||||
| 03 | Vedení okna | 1 | 08/1968 | 02/1977 | 51341800693 | $26.12 | Shop at ECS Tuning | |||
| 03 | Vedení okna | 1 | 08/1968 | 02/1977 | 51341800694 | $33.33 | Shop at ECS Tuning | |||
| 04 | Vodicí okenní lišta | 1 | 51341800459 | $54.68 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Vodicí okenní lišta | 1 | 51341800460 | $54.68 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Vedení okna jednodílné levé | 1 | 51341852229 | $44.39 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Vedení okna jednodílné pravé | 1 | 51341852230 | $44.39 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Dveřní okno?
- This technical diagram illustrates the Dveřní okno within the Výbava vozidla group for the 2500-3.3Li 3.0S produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Okenní rám zadní levý (Part #51341821101).
- Which models use the hardware listed in this Dveřní okno?
- The hardware and components featured in the Dveřní okno are specific to the 2500-3.3Li 3.0S produced during 1974. These technical specifications ensure that parts like the Okenní rám zadní levý (51341821101) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Dveřní okno assembly?
- Each item in the Dveřní okno corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Okenní rám zadní levý by locating its position on the schematic, which then links to the official BMW part number 51341821101 for the Výbava vozidla section.
