Dveřní okno for BMW 2500-3.3Li 2800 (1971)

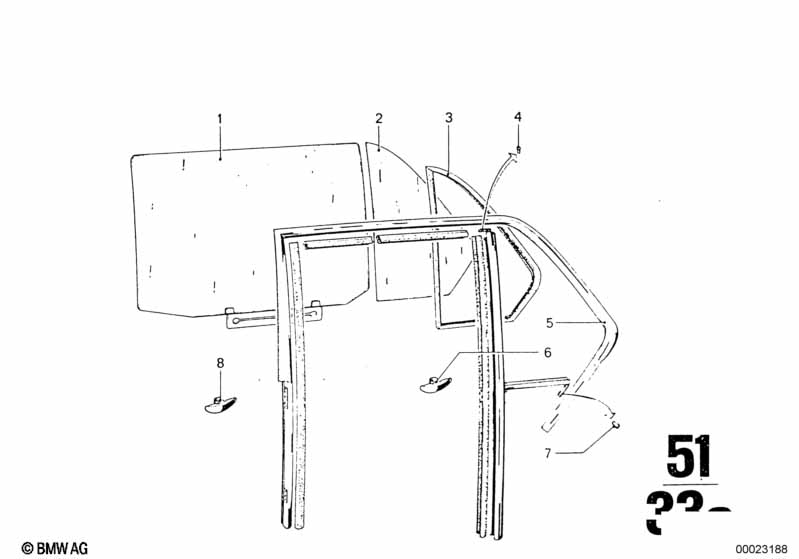

This Dveřní okno technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dveřní okno čiré zadní levé | 1 | 08/1968 | 02/1977 | 51341800681 | $107.14 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Dveřní okno čiré zadní pravé | 1 | 08/1968 | 02/1977 | 51341800682 | $107.14 | Shop at ECS Tuning | |||
| 01 | Dveřní okno zelené zadní levé | 1 | 08/1968 | 02/1977 | 51341808799 | $151.78 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Dveřní okno zelené zadní pravé | 1 | 08/1968 | 02/1977 | 51341808800 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Dveřní okno zelené zadní levé | 1 | 51341804389 | $116.00 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Dveřní okno zelené zadní pravé | 1 | 51341804390 | $116.00 | Shop at ECS Tuning | |||||
| 02 | Dveřní okno pevné čiré levé | 1 | 08/1968 | 02/1977 | 51341800451 | $107.14 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Dveřní okno pevné čiré pravé | 1 | 08/1968 | 02/1977 | 51341800452 | $107.14 | UKONČENO | Shop at ECS Tuning | ||
| 03 | Těsnicí rám | 2 | 51341800584 | $27.89 | Shop at ECS Tuning | |||||
| 04 | Nýt | B4X7 | 4 | 07119949255 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Okenní rám zadní levý | 1 | 08/1968 | 02/1977 | 51341800167 | UKONČENO | Shop at ECS Tuning | |||
| 05 | Okenní rám zadní pravý | 1 | 08/1968 | 02/1977 | 51341800168 | UKONČENO | Shop at ECS Tuning | |||
| 05 | Okenní rám zadní levý | 1 | 08/1968 | 02/1977 | 51341821095 | $272.30 | UKONČENO | Shop at ECS Tuning | ||
| 05 | Okenní rám zadní pravý | 1 | 08/1968 | 02/1977 | 51341821096 | $272.30 | UKONČENO | Shop at ECS Tuning | ||
| 06 | Odnímatelný kryt | 2 | 51211804146 | $2.74 | Shop at ECS Tuning | |||||
| 07 | Nýt | 3,2-3A | 2 | 07129948742 | $0.11 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Odnímatelný kryt | 4 | 51211804147 | $2.23 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
