Kombinace spínačů el. spouštěč okna for BMW 2500-3.3Li 2800 (1971)

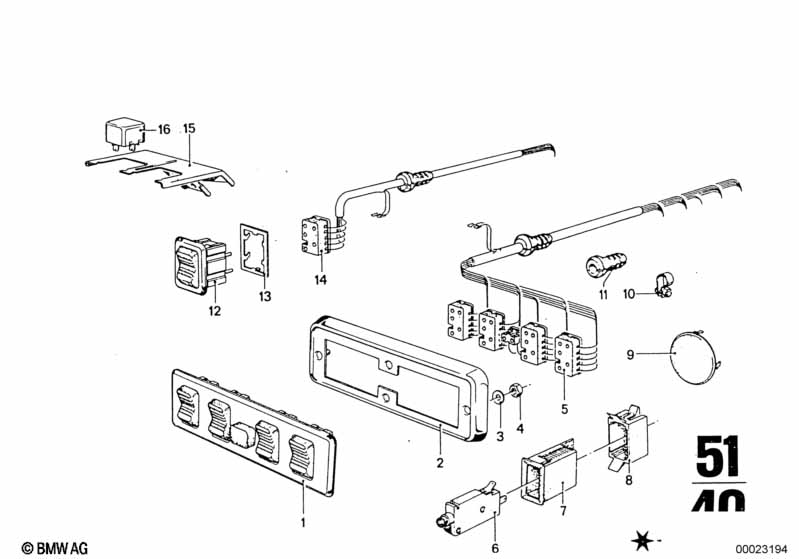

This Kombinace spínačů el. spouštěč okna technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kombinace spínačů el. spouštěč okna | 1 | 61311356531 | $96.68 | Shop at ECS Tuning | |||||
| 02 | Clona spínač | 1 | 51411823490 | $20.24 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Okno | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 04 | Šestihranná matice | M4-A2-70 | 4 | 07119922854 | Shop at ECS Tuning | |||||
| 05 | Kabelová sada el. spouštěč okna řidič | 1 | 61121356182 | UKONČENO | Shop at ECS Tuning | |||||
| 06 | Pojistkový automat | 1 | 61131358777 | $37.79 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Uchycení spínače | 2 | 61131356871 | $2.46 | Shop at ECS Tuning | |||||
| 08 | Uchycení | 2 | 61131356870 | $1.68 | Shop at ECS Tuning | |||||
| 09 | Uzavírací víčko | SCHWARZ | 1 | 08/1968 | 02/1977 | 51411869871 | $5.44 | Shop at ECS Tuning | ||
| 10 | Spona | 2 | 51351809839 | UKONČENO | Shop at ECS Tuning | |||||
| 11 | Kabelová průchodka | 2 | 61131356042 | $2.66 | Shop at ECS Tuning | |||||
| 12 | Kolébkový spínač | 3 | 61311356006 | $47.30 | UKONČENO | Shop at ECS Tuning | ||||
| 13 | Clona spínač | 4 | 51411822904 | $2.34 | UKONČENO | Shop at ECS Tuning | ||||
| 14 | Kabelová sada el.spouštěč okna spolujez. | 1 | 61121356066 | UKONČENO | Shop at ECS Tuning | |||||
| 15 | Uchycení | 1 | 61311356164 | UKONČENO | Shop at ECS Tuning | |||||
| 16 | Relé | GELB | 2 | 61311373585 | $23.75 | UKONČENO | Shop at ECS Tuning | |||
| 16 | Minirelé | 2 | 61311373588 | $11.38 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
