Výztuha karoserie for BMW MINI Cabrio F57 JCW

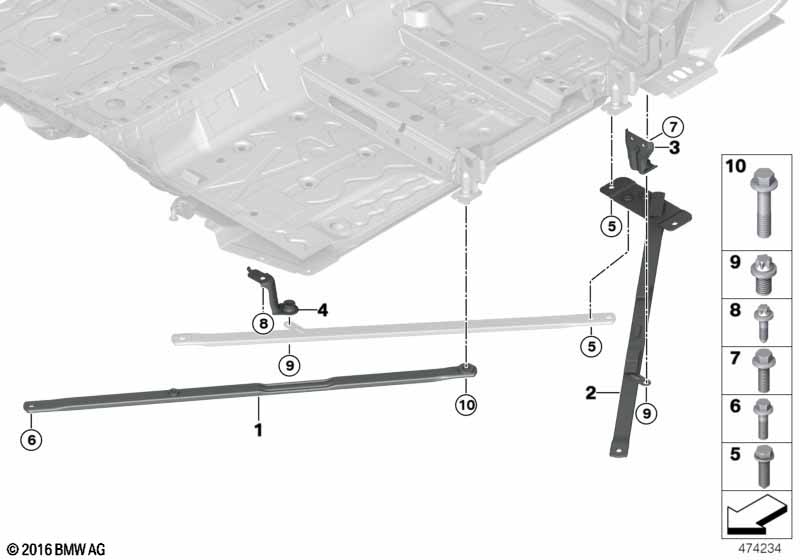

This Výztuha karoserie technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Torzní vzpěra přední | 2 | 51617337755 | Shop at ECS Tuning | ||||||
| 02 | Torzní vzpěra zadní levá | 1 | 51617349959 | Shop at ECS Tuning | ||||||
| 02 | Torzní vzpěra zadní pravá | 1 | 51617381996 | Shop at ECS Tuning | ||||||
| 03 | Držák torzní vzpěry vzadu vlevo | 1 | 51617380267 | Shop at ECS Tuning | ||||||
| 04 | Držák torzní vzpěry vzadu vpravo | 1 | 51617380268 | Shop at ECS Tuning | ||||||
| 05 | Šroub | M12X1,5X48 | 6 | 07119908596 | Shop at ECS Tuning | |||||
| 06 | Šestihranný šroub | M10X35-10.9-ZNS | 4 | 07119904956 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Šestihranný šroub | M6X20-PC-ZNS3 | 2 | 07119908088 | Shop at ECS Tuning | |||||
| 08 | Šroub s válc.hlavou s vnit.šestihranem | M8X25-PC-10.9 | 1 | 07119907137 | Shop at ECS Tuning | |||||
| 09 | Šroub s válc.hlavou s vnit.šestihranem | M10X16-8.8 | 2 | 07119908510 | Shop at ECS Tuning | |||||
| 10 | Šestihranný šroub s přírubou | M12X1,5X55-10.9 | 2 | 07119908533 | Shop at ECS Tuning |
