Montážní díly for BMW 3 Series E46 318ti (2004)

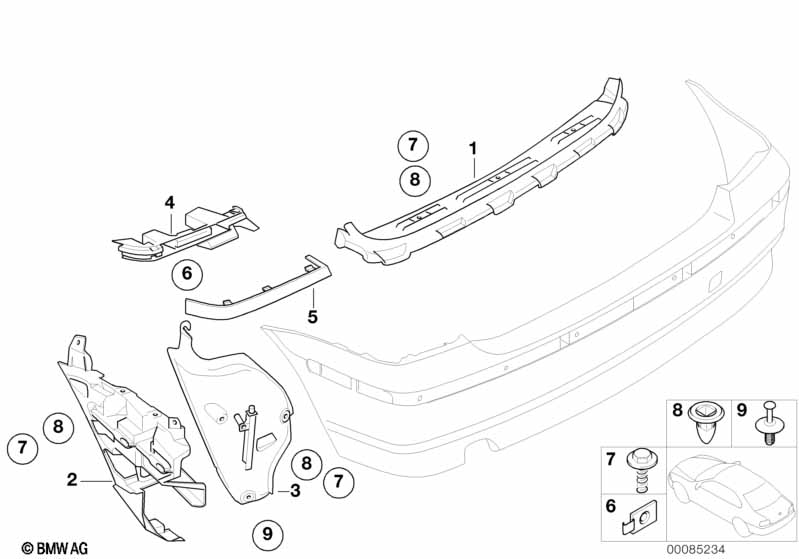

This Montážní díly technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vedení | 1 | 51128269755 | $29.85 | Shop at ECS Tuning | |||||
| 02 | Vedení levé | 1 | 51128252819 | $17.63 | Shop at ECS Tuning | |||||
| 02 | Vedení pravé | 1 | 51128252820 | $18.40 | Shop at ECS Tuning | |||||
| Pro vozidla s Aerodynamický paket |
S716A=Ano |
|||||||||
| 02 | Vedení levé | 1 | 51127894799 | Shop at ECS Tuning | ||||||
| 02 | Vedení pravé | 1 | 51127894800 | Shop at ECS Tuning | ||||||
| 03 | Kryt vložka podběhu kola vzadu vlevo | 1 | 51718253829 | Shop at ECS Tuning | ||||||
| 03 | Kryt vložka podběhu kola vzadu vpravo | 1 | 51718253830 | Shop at ECS Tuning | ||||||
| 04 | Vedení clona zadní svítilna levá | 1 | 51127006823 | $7.92 | Shop at ECS Tuning | |||||
| 04 | Vedení clona zadní svítilna pravá | 1 | 51127006824 | $7.92 | Shop at ECS Tuning | |||||
| 05 | Clona zadní svítilna základní lak levá | 1 | 51127052043 | $20.09 | Shop at ECS Tuning | |||||
| 05 | Clona zadní svítilna základní lak pravá | 1 | 51127052044 | $20.09 | Shop at ECS Tuning | |||||
| Při objednávce uveďte kód barvy | ||||||||||
| 05 | Clona zadní svítilna lakovaná levá | CODE - UNI/MET. | 1 | 51110029019 | $83.42 | UKONČENO, +core | Shop at ECS Tuning | |||
| 05 | Clona zadní svítilna lakovaná pravá | CODE - UNI/MET. | 1 | 51110029020 | $83.42 | UKONČENO, +core | Shop at ECS Tuning | |||
| 06 | Upínací svorky levé | 1 | 51127030271 | $0.39 | Shop at ECS Tuning | |||||
| 06 | Upínací svorky pravé | 1 | 51127030272 | $0.39 | Shop at ECS Tuning | |||||
| 07 | Šroub | SECHSKANT | X | 07143428231 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Rozpěrná matice | X | 51127046911 | $0.48 | Shop at ECS Tuning | |||||
| 09 | Rozpěrný nýt | X | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
