Loga / tahy písma for BMW 3 Series E46 316ti (2004)

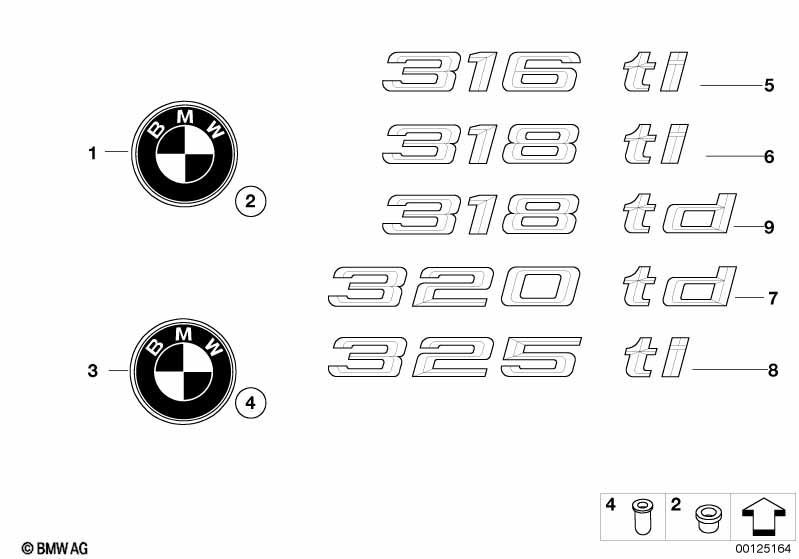

This Loga / tahy písma technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| vhodné jen pro přední kapotu | ||||||||||
| 01 | Plaketa | Ø 82MM | 1 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Oprava nutná | ||||||||||
| -- | Průchodka | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 02 | Průchodka | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| vhodné jen pro zadní výklopné dveře | ||||||||||
| 03 | Plaketa | BMW Ø 74MM | 1 | 03/2003 | 51148219237 | $30.43 | Shop at ECS Tuning | |||
| 04 | Průchodka | 2 | 51148209932 | $0.22 | Shop at ECS Tuning | |||||
| 05 | Logo lepené zadní | 316TI | 1 | 51147025180 | $32.02 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 316ti Loga / tahy písma?
- This technical diagram illustrates the Loga / tahy písma within the Výbava vozidla group for the 3 Series E46 316ti produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Plaketa (Part #51148132375).
- Which models use the hardware listed in this Loga / tahy písma?
- The hardware and components featured in the Loga / tahy písma are specific to the 3 Series E46 316ti produced during 2004. These technical specifications ensure that parts like the Plaketa (51148132375) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Loga / tahy písma assembly?
- Each item in the Loga / tahy písma corresponds to the numbered list below the illustration. For the 3 Series E46 316ti, you can identify the Plaketa by locating its position on the schematic, which then links to the official BMW part number 51148132375 for the Výbava vozidla section.
