Zvuková izolace zadní for BMW MINI Countryman F60 One

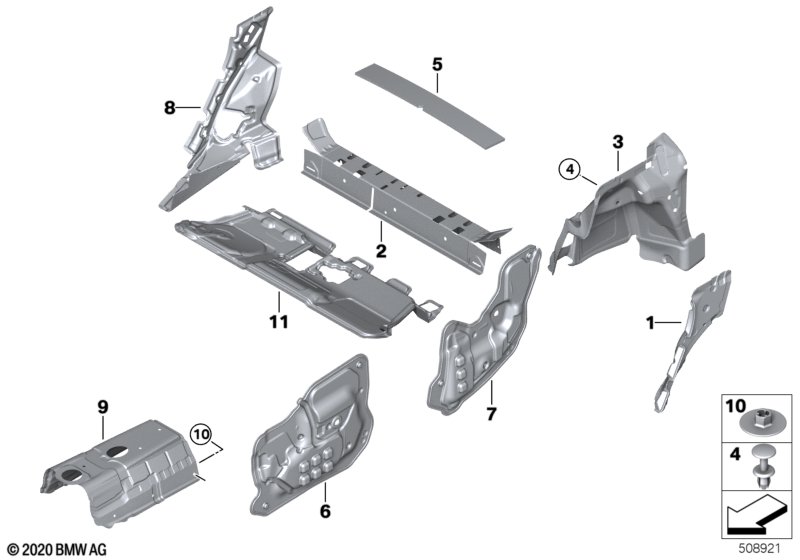

This Zvuková izolace zadní technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 One. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zvuková izolace podběh kola zadní levá | 1 | 51487393775 | Shop at ECS Tuning | ||||||
| 01 | Zvuková izolace podběh kola zadní pravá | 1 | 51487393776 | Shop at ECS Tuning | ||||||
| 02 | Zvuková izolace příčný držák zav.prostor | 1 | 51487298609 | Shop at ECS Tuning | ||||||
| 03 | Zvuková izolace podběh kola levá | 1 | 51477380669 | Shop at ECS Tuning | ||||||
| 03 | Zvuková izolace podběh kola pravá | 1 | 51477380670 | Shop at ECS Tuning | ||||||
| 04 | Rozpěrný nýt | 2 | 07147136172 | $0.38 | Shop at ECS Tuning | |||||
| Pro vozidla s Panoramatická střecha elektrická |
S402A=Ne |
|||||||||
| 05 | Zvuková izolace střecha | 1 | 51487378236 | Shop at ECS Tuning | ||||||
| 06 | zvuková izolace dveří vpředu vlevo | 1 | 51487492039 | Shop at ECS Tuning | ||||||
| 06 | zvuková izolace dveří vpředu vpravo | 1 | 51487492040 | Shop at ECS Tuning | ||||||
| 07 | Zvuková izolace dveře zadní levé | 1 | 51487492041 | Shop at ECS Tuning | ||||||
| 07 | Zvuková izolace dveře zadní pravé | 1 | 51487492042 | Shop at ECS Tuning | ||||||
| 09 | Zvuková izolace tunel vnější | 1 | 07/2020 | 51489874892 | NoS | Shop at ECS Tuning | ||||
| 10 | Svorková matice | 5X9 D=30 SW10 | 8 | 07147261260 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Díl není centrálně skladován.)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Countryman F60 One Zvuková izolace zadní?
- This technical diagram illustrates the Zvuková izolace zadní within the Výbava vozidla group for the MINI Countryman F60 One. It provides a detailed exploded view of the components, identifying key parts such as the Zvuková izolace podběh kola zadní levá (Part #51487393775).
- Which models use the hardware listed in this Zvuková izolace zadní?
- The hardware and components featured in the Zvuková izolace zadní are specific to the MINI Countryman F60 One. These technical specifications ensure that parts like the Zvuková izolace podběh kola zadní levá (51487393775) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zvuková izolace zadní assembly?
- Each item in the Zvuková izolace zadní corresponds to the numbered list below the illustration. For the MINI Countryman F60 One, you can identify the Zvuková izolace podběh kola zadní levá by locating its position on the schematic, which then links to the official BMW part number 51487393775 for the Výbava vozidla section.
