Střešní ozdobná lišta/střešní lišta for BMW 3 Series E36 323i (1999)

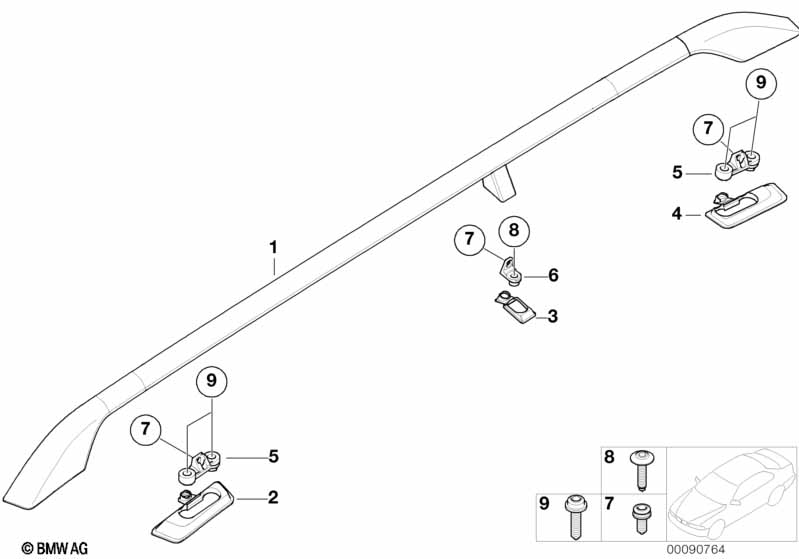

This Střešní ozdobná lišta/střešní lišta technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Střešní lišta levá | 1 | 51138185189 | $135.47 | UKONČENO | Shop at ECS Tuning | ||||
| 01 | Střešní lišta pravá | 1 | 51138185190 | $135.47 | Shop at ECS Tuning | |||||
| 02 | Podložka střešní lišta přední levá | 1 | 51138203391 | $4.98 | Shop at ECS Tuning | |||||
| 02 | Podložka střešní lišta | 1 | 51138203392 | $4.98 | Shop at ECS Tuning | |||||
| 03 | Podložka střešní lišta střední levá | 1 | 51138203393 | $2.59 | Shop at ECS Tuning | |||||
| 03 | Podložka střešní lišta střední pravá | 1 | 51138203394 | $2.89 | Shop at ECS Tuning | |||||
| 04 | Podložka střešní lišta zadní levá | 1 | 51138203395 | $4.98 | Shop at ECS Tuning | |||||
| 04 | Podložka střešní lišta zadní pravá | 1 | 51138203396 | $4.98 | Shop at ECS Tuning | |||||
| 05 | Adaptér levý | 2 | 51138183315 | Shop at ECS Tuning | ||||||
| 05 | Adaptér pravý | 2 | 51138183316 | Shop at ECS Tuning | ||||||
| 06 | Adaptér střední levý | 1 | 51138183317 | Shop at ECS Tuning | ||||||
| 06 | Adaptér střední pravý | 1 | 51138183318 | Shop at ECS Tuning | ||||||
| 07 | Šroub | M8X15 | 6 | 51138183319 | $4.08 | Shop at ECS Tuning | ||||
| 08 | Šroub | M6X29 | 2 | 51138183320 | Shop at ECS Tuning | |||||
| 09 | Šroub | M8X35 | 8 | 51138183321 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 323i Střešní ozdobná lišta/střešní lišta?
- This technical diagram illustrates the Střešní ozdobná lišta/střešní lišta within the Výbava vozidla group for the 3 Series E36 323i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Střešní lišta levá (Part #51138185189).
- Which models use the hardware listed in this Střešní ozdobná lišta/střešní lišta?
- The hardware and components featured in the Střešní ozdobná lišta/střešní lišta are specific to the 3 Series E36 323i produced during 1999. These technical specifications ensure that parts like the Střešní lišta levá (51138185189) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Střešní ozdobná lišta/střešní lišta assembly?
- Each item in the Střešní ozdobná lišta/střešní lišta corresponds to the numbered list below the illustration. For the 3 Series E36 323i, you can identify the Střešní lišta levá by locating its position on the schematic, which then links to the official BMW part number 51138185189 for the Výbava vozidla section.
