Držák výplň for BMW 3 Series E46 318Ci (2003)

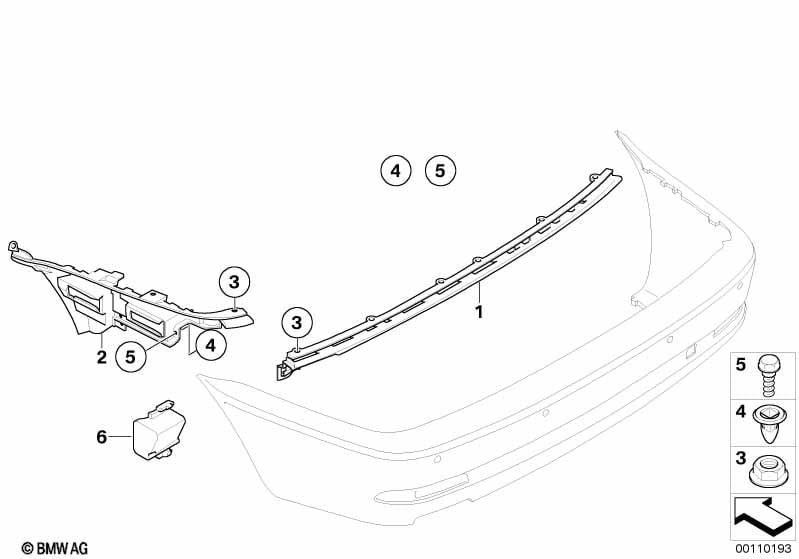

This Držák výplň technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Aerodynamický paket |
S716A=Ne |
|||||||||
| 01 | Vedení | 1 | 51127065477 | $30.08 | Shop at ECS Tuning | |||||
| 02 | Vedení levé | 1 | 51127065481 | $30.37 | Shop at ECS Tuning | |||||
| 02 | Vedení pravé | 1 | 51127065482 | $30.37 | Shop at ECS Tuning | |||||
| 03 | Šestihranná matice s podložkou | M6 | X | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 04 | Rozpěrná matice | 2 | 51127046911 | $0.48 | Shop at ECS Tuning | |||||
| 05 | Šroub | SECHSKANT | 2 | 07143428231 | $0.36 | Shop at ECS Tuning | ||||
