Tepelná izolace for BMW MINI Cabrio R52 Cooper (2002)

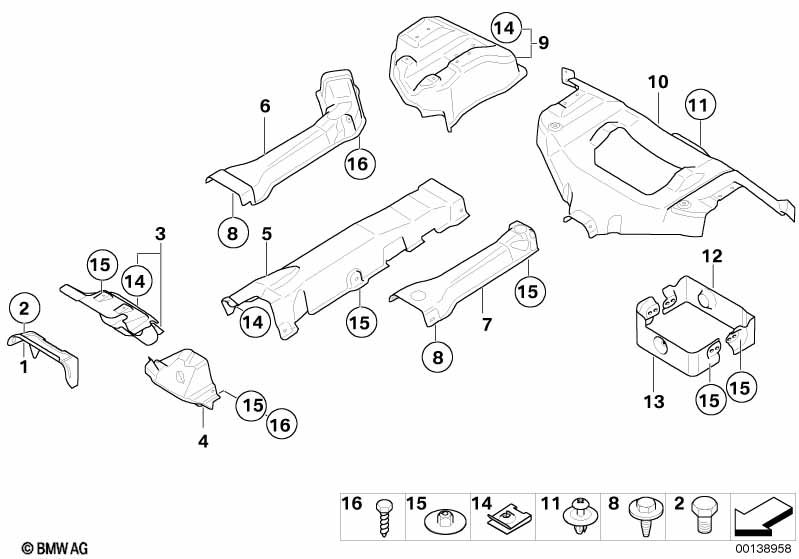

This Tepelná izolace technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio R52 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Tepelný ochranný kryt čelní stěna | 1 | 51487201452 | $22.60 | Shop at ECS Tuning | |||||
| 04 | Tepelný ochranný kryt řadicí lanko | 1 | 07/2004 | 51487053475 | $17.14 | UKONČENO | Shop at ECS Tuning | |||
| Pro vozidla s Steptronic nebo Automatická převodovka |
S202A=Ano S205A=Ano |
|||||||||
| 04 | Tepelný ochranný kryt řadicí lanko | 1 | 51487053476 | $17.14 | Shop at ECS Tuning | |||||
| 06 | Tepelná izolace nádrž | 1 | 51487124372 | $56.70 | Shop at ECS Tuning | |||||
| 08 | Šestihranný šroub s podložkou | M6X20MM | 2 | 51712752359 | $1.34 | Shop at ECS Tuning | ||||
| 09 | Tepelná izolace zadní tlumič výfuku | 1 | 51487201451 | $90.90 | Shop at ECS Tuning | |||||
| 14 | Matice na plech | ST4,8-13-ZNS3 | 3 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 15 | Matice na plech | D=30MM, ZNS3 | 12 | 07146949380 | $0.44 | Shop at ECS Tuning | ||||
| 16 | Šestihranný šroub na plech | ST4,8X16-ZNS3 | 3 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
