Držák přední for BMW MINI Paceman R61 Cooper

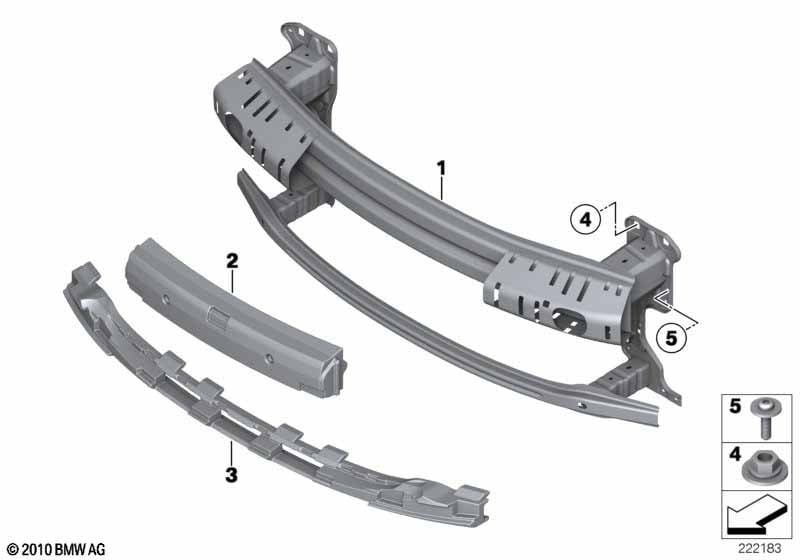

This Držák přední technical drawing provides a detailed breakdown of the assembly for the MINI Paceman R61 Cooper. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Držák nárazník přední | 1 | 51119801600 | +core | Shop at ECS Tuning | |||||
| Pro vozidla s Provedení Korea |
L802A=Ano |
|||||||||
| 01 | Držák nárazník přední | 1 | 51119801601 | +core | Shop at ECS Tuning | |||||
| 02 | Tlumič nárazů nahoře | 1 | 51119801602 | Shop at ECS Tuning | ||||||
| 03 | Tlumič nárazů dole | 1 | 51119801604 | Shop at ECS Tuning | ||||||
| 04 | Šestihranná matice s podložkou | M10 | 6 | 71606765413 | $3.95 | Shop at ECS Tuning | ||||
| 05 | PT-šroub s podložkou | ISA 5X18 | 6 | 10/2016 | 51642756146 | $0.77 | UKONČENO | Shop at ECS Tuning | ||
| 05 | Šroub | V-TS5X20 ZNS3 | 6 | 51119908446 | Shop at ECS Tuning | |||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Paceman R61 Cooper Držák přední?
- This technical diagram illustrates the Držák přední within the Výbava vozidla group for the MINI Paceman R61 Cooper. It provides a detailed exploded view of the components, identifying key parts such as the Držák nárazník přední (Part #51119801600).
- Which models use the hardware listed in this Držák přední?
- The hardware and components featured in the Držák přední are specific to the MINI Paceman R61 Cooper. These technical specifications ensure that parts like the Držák nárazník přední (51119801600) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Držák přední assembly?
- Each item in the Držák přední corresponds to the numbered list below the illustration. For the MINI Paceman R61 Cooper, you can identify the Držák nárazník přední by locating its position on the schematic, which then links to the official BMW part number 51119801600 for the Výbava vozidla section.
