Laky/štětce for BMW R45-R65LS..78-85 R65LS (1983)

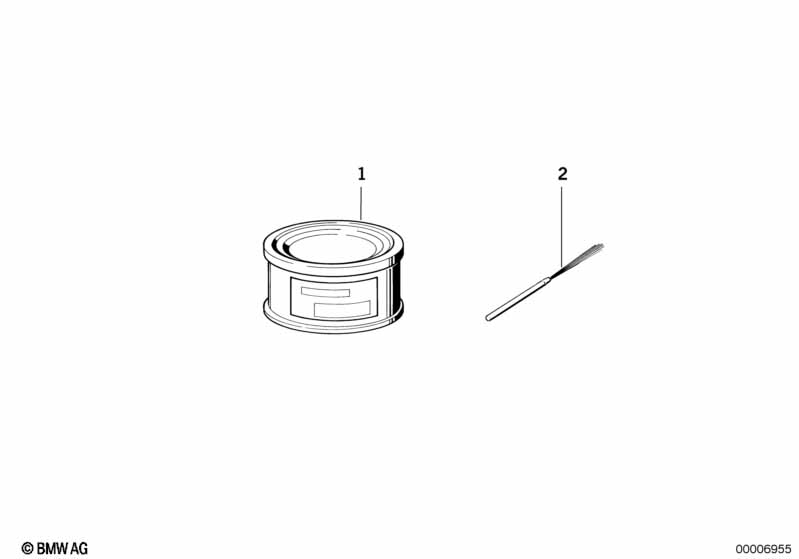

This Laky/štětce technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Štětec | NR. 6 | X | 02030117480 | $7.09 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Štětec | NR. 8 | X | 02030117482 | $7.09 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65LS Laky/štětce?
- This technical diagram illustrates the Laky/štětce within the Výbava karoserie group for the R45-R65LS..78-85 R65LS produced during 1983. It provides a detailed exploded view of the components, identifying key parts such as the Štětec (Part #02030117480).
- Which models use the hardware listed in this Laky/štětce?
- The hardware and components featured in the Laky/štětce are specific to the R45-R65LS..78-85 R65LS produced during 1983. These technical specifications ensure that parts like the Štětec (02030117480) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Laky/štětce assembly?
- Each item in the Laky/štětce corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R65LS, you can identify the Štětec by locating its position on the schematic, which then links to the official BMW part number 02030117480 for the Výbava karoserie section.
