Montážní díly motorový prostor for BMW MINI Paceman R61 Cooper

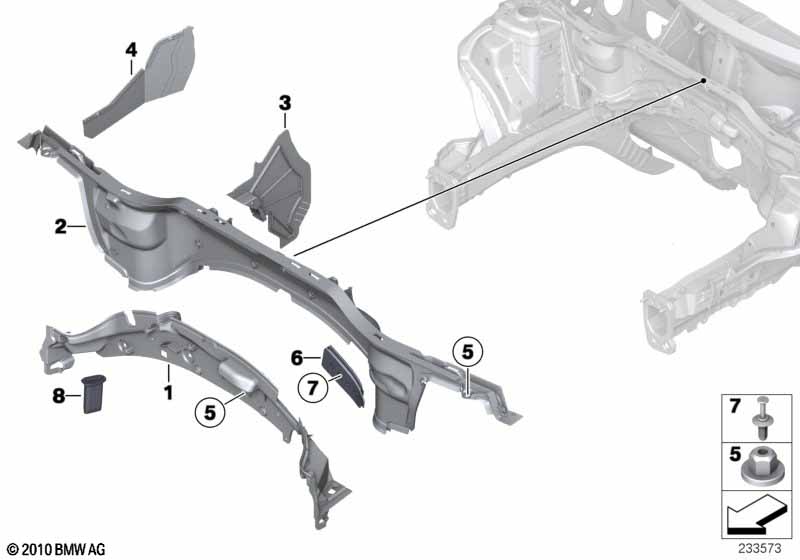

This Montážní díly motorový prostor technical drawing provides a detailed breakdown of the assembly for the MINI Paceman R61 Cooper. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Výplň čelní stěna spodní díl | 1 | 07/2014 | 51719801779 | Shop at ECS Tuning | |||||
| 01 | Výplň čelní stěna spodní díl | 1 | 07/2014 | 51719813580 | Shop at ECS Tuning | |||||
| 02 | Výplň čelní stěna horní díl | 1 | 07/2014 | 51719801780 | Shop at ECS Tuning | |||||
| 02 | Výplň čelní stěna horní díl | 1 | 07/2014 | 51719813581 | Shop at ECS Tuning | |||||
| 03 | Kryt | 1 | 51719801777 | Shop at ECS Tuning | ||||||
| 04 | Dělicí příčka akumulátor | 1 | 51719801002 | Shop at ECS Tuning | ||||||
| 05 | Plastová uzavřená matice s podložkou | D=18MM | 8 | 08/2013 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| 05 | Plastová matice čep s hrubým závitem | M6 | 8 | 07147336362 | Shop at ECS Tuning | |||||
| 06 | Průchodka | 1 | 51712751609 | $3.75 | Shop at ECS Tuning | |||||
| 07 | Rozpěrný nýt | D = 6MM | 1 | 51111908077 | $0.30 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Paceman R61 Cooper Montážní díly motorový prostor?
- This technical diagram illustrates the Montážní díly motorový prostor within the Výbava vozidla group for the MINI Paceman R61 Cooper. It provides a detailed exploded view of the components, identifying key parts such as the Výplň čelní stěna spodní díl (Part #51719801779).
- Which models use the hardware listed in this Montážní díly motorový prostor?
- The hardware and components featured in the Montážní díly motorový prostor are specific to the MINI Paceman R61 Cooper. These technical specifications ensure that parts like the Výplň čelní stěna spodní díl (51719801779) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Montážní díly motorový prostor assembly?
- Each item in the Montážní díly motorový prostor corresponds to the numbered list below the illustration. For the MINI Paceman R61 Cooper, you can identify the Výplň čelní stěna spodní díl by locating its position on the schematic, which then links to the official BMW part number 51719801779 for the Výbava vozidla section.
