Obložení podlahy for BMW MINI F56 JCW

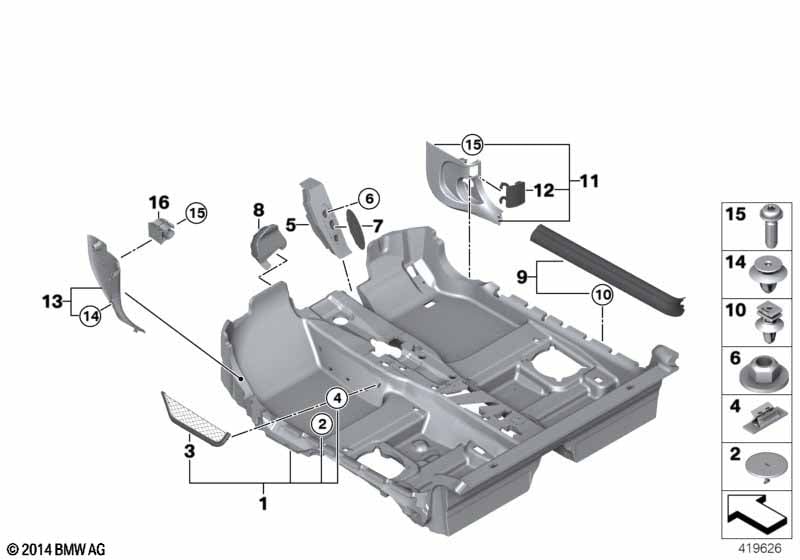

This Obložení podlahy technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Obložení podlahy | 1 | 51477307258 | Shop at ECS Tuning | ||||||
| 02 | Upínací prvek s bajonetovým uchycením | D62MM/L16MM | 4 | 07149166608 | $2.17 | Shop at ECS Tuning | ||||
| Pro vozidla s Odkládací paket |
S493A=Ano |
|||||||||
| 03 | Síť prostoru pro nohy | 1 | 51477362432 | Shop at ECS Tuning | ||||||
| 04 | Svorka | 3 | 07146968215 | $1.94 | Shop at ECS Tuning | |||||
| 05 | Opěrka nohou | 1 | 51477298849 | Shop at ECS Tuning | ||||||
| 06 | Šestihranná matice | BM6-8-ZNS3 | 3 | 07129904870 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Vložka nožní opěrka ušlechtilá ocel | 1 | 51477149471 | $31.35 | Shop at ECS Tuning | |||||
| Pro vozidla s Přídavný rozsah podle EU |
S230A=Ano |
|||||||||
| 08 | Deformační prvek čelní stěna levá | 1 | 51477371471 | Shop at ECS Tuning | ||||||
| 09 | Krycí lišta vstup levá | 1 | 51477298799 | Shop at ECS Tuning | ||||||
| 09 | Krycí lišta vstup pravá | 1 | 51477298800 | Shop at ECS Tuning | ||||||
| 10 | Svorka šedá | 12 | 51478262533 | $0.74 | Shop at ECS Tuning | |||||
| 11 | Boční výplň přední dolní pravá | 1 | 51437298804 | Shop at ECS Tuning | ||||||
| 12 | Víko OBD | 1 | 51437360238 | Shop at ECS Tuning | ||||||
| 13 | Boční výplň přední dolní levá | 1 | 51437298803 | Shop at ECS Tuning | ||||||
| 14 | Svorka | 5 | 07147152593 | $0.17 | Shop at ECS Tuning | |||||
| 15 | Šroub | VS-TS5X16 SW | 2 | 51139908498 | Shop at ECS Tuning | |||||
| Pro vozidla s Provedení Japonsko |
L807A=Ano |
|||||||||
| 16 | Držák výstražná světlice | 2 | 51437044418 | $2.23 | Shop at ECS Tuning | |||||
