Různé díly karosérie for BMW MINI Cabrio R52 Cooper (2002)

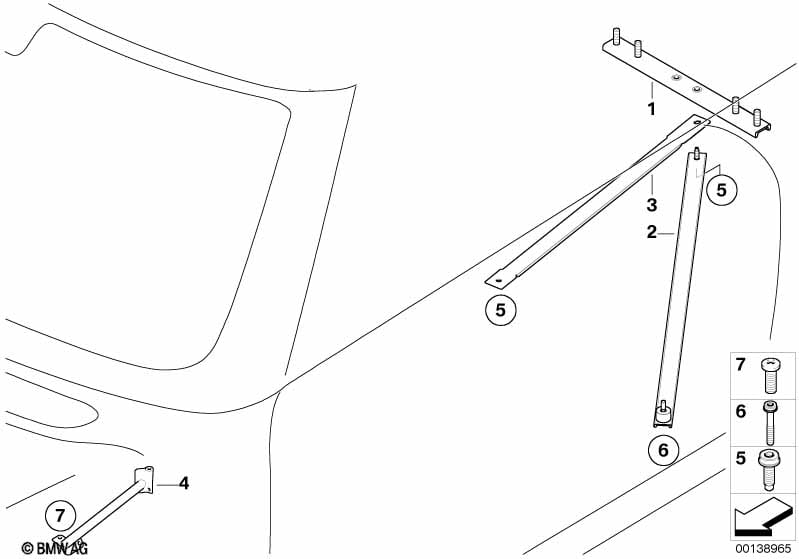

This Různé díly karosérie technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio R52 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Držák táhlo | 1 | 51617113473 | $71.82 | Shop at ECS Tuning | |||||
| 02 | Táhlo | L=1045MM | 2 | 51617070779 | $36.22 | Shop at ECS Tuning | ||||
| 03 | Táhlo | L=790MM | 2 | 51617133627 | $31.11 | +core | Shop at ECS Tuning | |||
| 04 | Diagonální vzpěra vlevo | 1 | 51617123515 | $18.32 | Shop at ECS Tuning | |||||
| 04 | Diagonální vzpěra vpravo | 1 | 51617123516 | $18.32 | Shop at ECS Tuning | |||||
| 05 | Šroub s válcovou hlavou | M10X30-Z1 | 8 | 07147162464 | $3.16 | Shop at ECS Tuning | ||||
| 06 | Šroub s válcovou hlavou | 2 | 07147162465 | $3.16 | Shop at ECS Tuning | |||||
| 07 | Šroub s čočk. hlavou se zkrutnou pojist. | M6X14 MK | 8 | 07146957269 | $0.62 | Shop at ECS Tuning |
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
