Držák přístrojová deska for BMW 5 Series G90 M5 M5 (2025)

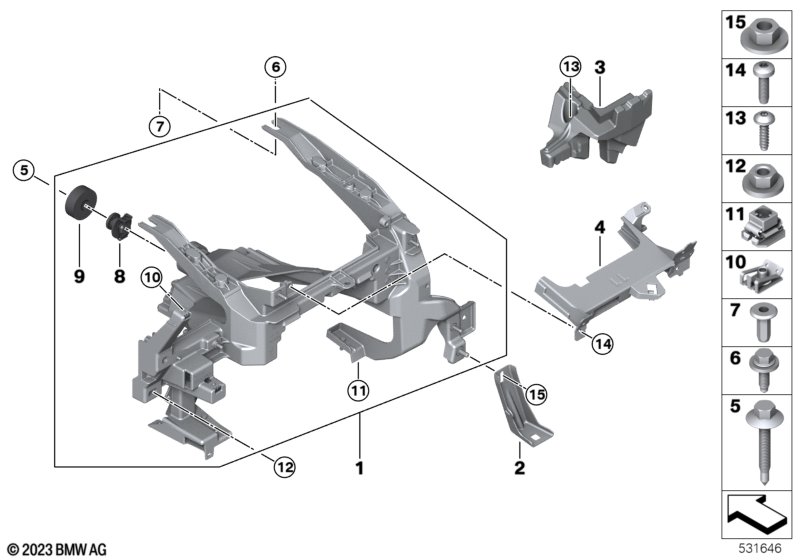

This Držák přístrojová deska technical drawing provides a detailed breakdown of the assembly for the 5 Series G90 M5 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Držák přístrojové desky | 1 | 51459418663 | NoS | Shop at ECS Tuning | |||||
| 02 | Uchyc.podp.tunelu vlevo | 1 | 51459870093 | NoS | Shop at ECS Tuning | |||||
| 02 | Uchyc.podp.tunelu vpravo | 1 | 51459870094 | NoS | Shop at ECS Tuning | |||||
| Pro vozidla s BMW Live Cockpit Professional |
S6U3A=Ano |
|||||||||
| 04 | Držák IC Box HUD | 1 | 51459631814 | NoS | Shop at ECS Tuning | |||||
| 05 | Šestihranný šroub s přírubou | M8X86 | 1 | 06846839060 | Shop at ECS Tuning | |||||
| 06 | Kombinovaný šroub s šestihrannou hlavou | M8X26 | 2 | 07149472472 | NoS | Shop at ECS Tuning | ||||
| 07 | Ucpávka šestihran s kuželovitým krkem | 2 | 07148862129 | Shop at ECS Tuning | ||||||
| 08 | Vyrovnávací prvek | 1 | 07149321593 | Shop at ECS Tuning | ||||||
| 09 | Vyrovnávací prvek | 1 | 07149391156 | Shop at ECS Tuning | ||||||
| 10 | Svorka C matice na plech | 6 | 07149496755 | NoS | Shop at ECS Tuning | |||||
| 11 | Svorka pro otočný uzávěr | 2 | 07149623033 | NoS | Shop at ECS Tuning | |||||
| 12 | Šestihranná matice s podložkou | M8 | 8 | 07149200945 | Shop at ECS Tuning | |||||
| 14 | Šroub s čočkovitou hlavou samořezný | M6X20 | 3 | 07149129752 | Shop at ECS Tuning | |||||
| 15 | Šestihranná matice | BM6-8-ZNNIV SI | 1 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Díl není centrálně skladován.)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G90 M5 M5 Držák přístrojová deska?
- This technical diagram illustrates the Držák přístrojová deska within the Výbava vozidla group for the 5 Series G90 M5 M5 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Držák přístrojové desky (Part #51459418663).
- Which models use the hardware listed in this Držák přístrojová deska?
- The hardware and components featured in the Držák přístrojová deska are specific to the 5 Series G90 M5 M5 produced during 2025. These technical specifications ensure that parts like the Držák přístrojové desky (51459418663) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Držák přístrojová deska assembly?
- Each item in the Držák přístrojová deska corresponds to the numbered list below the illustration. For the 5 Series G90 M5 M5, you can identify the Držák přístrojové desky by locating its position on the schematic, which then links to the official BMW part number 51459418663 for the Výbava vozidla section.
