Dodatečné díly strop karoserie for BMW MINI F66 JCW

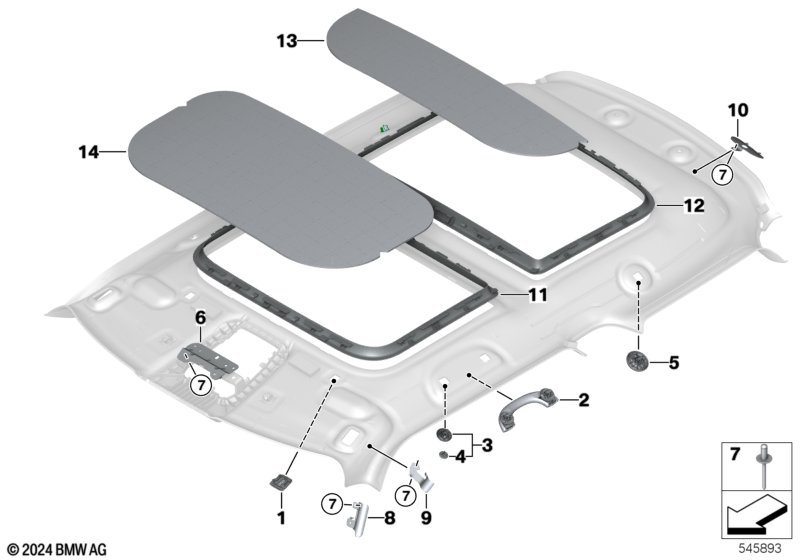

This Dodatečné díly strop karoserie technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Strop karoserie antracit |
S4AAA=Ano |
|||||||||
| 01 | Clona mikrofon | SCHWARZ | 2 | 51447495572 | Shop at ECS Tuning | |||||
| 02 | Rukojeť vpředu | SCHWARZ | 1 | 51167336852 | Shop at ECS Tuning | |||||
| 03 | Kryt strop | SCHWARZ | 2 | 51447374906 | Shop at ECS Tuning | |||||
| 04 | Víčko kryt strop | SCHWARZ | 1 | 51447375213 | Shop at ECS Tuning | |||||
| 05 | VĚŠÁK | SCHWARZ | 2 | 51165A63113 | NoS | Shop at ECS Tuning | ||||
| 06 | Plechový držák strop | 1 | 51447300722 | Shop at ECS Tuning | ||||||
| 07 | Slepý nýt | 4 | 07147265827 | Shop at ECS Tuning | ||||||
| Pro vozidla s Panoramatická střecha elektrická |
S402A=Ano |
|||||||||
| 11 | Rám panoramatické střechy vpředu | SCHWARZ | 1 | 51445A6CE42 | NoS | Shop at ECS Tuning | ||||
| 12 | Rám panoramatické střechy vzadu | SCHWARZ | 1 | 51445A6CE43 | NoS | Shop at ECS Tuning | ||||
| Pro vozidla s Panoramatická střecha elektrická |
S402A=Ne |
|||||||||
| 13 | Výztuha střechy malá | 1 | 51445A48C48 | Shop at ECS Tuning | ||||||
| 14 | Výztuha střechy velká | 1 | 51445A48C49 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Díl není centrálně skladován.)
