Výplň A- / B- / C-sloupek for BMW MINI F66 JCW

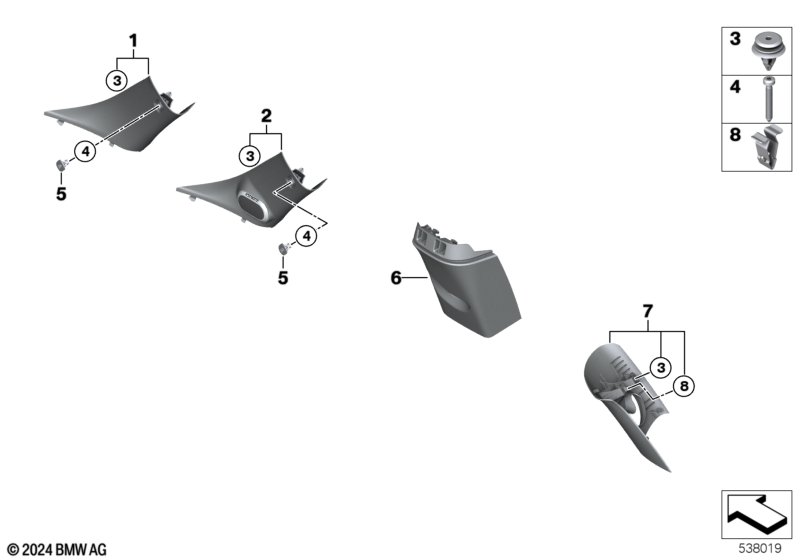

This Výplň A- / B- / C-sloupek technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Provedení Korea a Provedení Čína a Strop karoserie antracit a Harman/Kardon Surround Sound System |
L802A=Ne L8AAA=Ne S4AAA=Ano S688A=Ne |
|||||||||
| 01 | Clona A-sloupek levý | SCHWARZ | 1 | 51435A32FF7 | NoS | Shop at ECS Tuning | ||||
| 01 | Clona A-sloupek pravý | SCHWARZ | 1 | 51435A32FF8 | NoS | Shop at ECS Tuning | ||||
| Pro vozidla s Provedení Korea a Provedení Čína |
L802A=Ano L8AAA=Ano |
|||||||||
| 02 | Clona A-sloupek HiFi levý | SCHWARZ US | 1 | 51435B3FE95 | Shop at ECS Tuning | |||||
| 02 | Clona A-sloupek HiFi pravý | SCHWARZ US | 1 | 51435B3FE96 | Shop at ECS Tuning | |||||
| Pro vozidla s Provedení Korea a Provedení Čína |
L802A=Ano L8AAA=Ne |
|||||||||
| 02 | Clona A-sloupek HiFi levý | SCHWARZ US | 1 | 51435B3FE95 | Shop at ECS Tuning | |||||
| 02 | Clona A-sloupek HiFi pravý | SCHWARZ US | 1 | 51435B3FE96 | Shop at ECS Tuning | |||||
| Pro vozidla s Provedení Korea a Provedení Čína |
L802A=Ne L8AAA=Ano |
|||||||||
| 02 | Clona A-sloupek HiFi levý | SCHWARZ US | 1 | 51435B3FE95 | NoS | Shop at ECS Tuning | ||||
| 02 | Clona A-sloupek HiFi pravý | SCHWARZ US | 1 | 51435B3FE96 | NoS | Shop at ECS Tuning | ||||
| Pro vozidla s Provedení Korea a Provedení Čína a Strop karoserie antracit a Harman/Kardon Surround Sound System |
L802A=Ne L8AAA=Ne S4AAA=Ano S688A=Ano |
|||||||||
| 02 | Clona A-sloupek HiFi levý | SCHWARZ | 1 | 51435A33003 | NoS | Shop at ECS Tuning | ||||
| 02 | Clona A-sloupek HiFi pravý | SCHWARZ | 1 | 51435A33004 | NoS | Shop at ECS Tuning | ||||
| 03 | Svorka přírodní | 6 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 04 | Šroub na plech | ST4,8X38-R-ZNFE | 2 | 07119905199 | $0.36 | Shop at ECS Tuning | ||||
| Pro vozidla s Strop karoserie antracit |
S4AAA=Ano |
|||||||||
| 05 | Odnímatelný kryt | SCHWARZ | 2 | 51435A7DC86 | NoS | Shop at ECS Tuning | ||||
| 06 | Clona sloupek B horní levý | SCHWARZ | 1 | 51435A33097 | NoS | Shop at ECS Tuning | ||||
| 06 | Clona sloupek B horní pravý | SCHWARZ | 1 | 51435A33098 | NoS | Shop at ECS Tuning | ||||
| 07 | Clona sloupek C horní levý | SCHWARZ | 1 | 51435A330B5 | NoS | Shop at ECS Tuning | ||||
| 07 | Clona C-sloupek pravý | SCHWARZ | 1 | 51435A330B6 | NoS | Shop at ECS Tuning | ||||
| 08 | Svorka | 2 | 51437321215 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Díl není centrálně skladován.)
