Držák zadní for BMW MINI F66 JCW

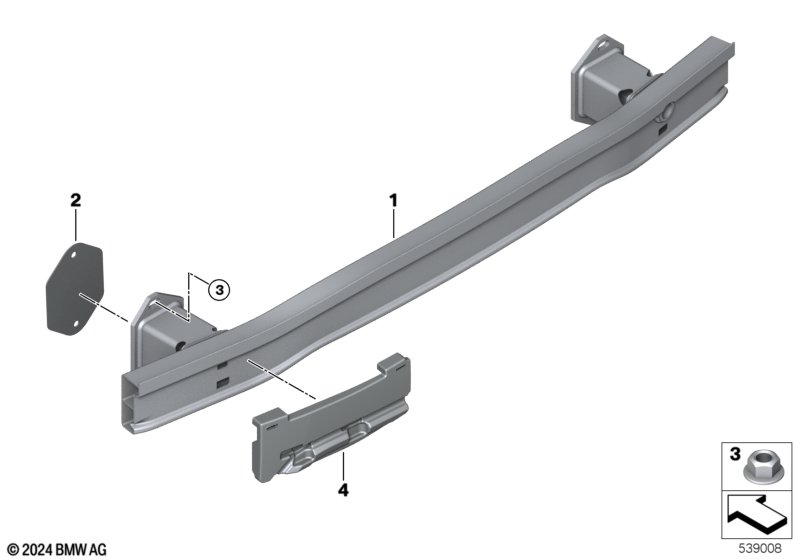

This Držák zadní technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Nosník nárazníku zadní | 1 | 51125A44D59 | Shop at ECS Tuning | ||||||
| 02 | Těsnicí kroužek | 2 | 51127300789 | Shop at ECS Tuning | ||||||
| 03 | Šestihranná matice | 4 | 07147266441 | Shop at ECS Tuning | ||||||
| Pro vozidla s Provedení Čína a Přídavný rozsah podle EU a Specifické dodatečné rozsahy JCW trim |
L8AAA=Ano S230A=Ano S9T9A=Ne |
|||||||||
| 04 | Tlumič nárazů zadní levý | 1 | 51125A69DE7 | Shop at ECS Tuning | ||||||
| 04 | Tlumič nárazů zadní pravý | 1 | 51125A69DE8 | Shop at ECS Tuning | ||||||
| Pro vozidla s Provedení Čína a Přídavný rozsah podle EU a Specifické dodatečné rozsahy JCW trim |
L8AAA=Ano S230A=Ne S9T9A=Ne |
|||||||||
| 04 | Tlumič nárazů zadní levý | 1 | 51125A69DE7 | Shop at ECS Tuning | ||||||
| 04 | Tlumič nárazů zadní pravý | 1 | 51125A69DE8 | Shop at ECS Tuning | ||||||
| Pro vozidla s Provedení Čína a Přídavný rozsah podle EU a Specifické dodatečné rozsahy JCW trim |
L8AAA=Ne S230A=Ano S9T9A=Ne |
|||||||||
| 04 | Tlumič nárazů zadní levý | 1 | 51125A69DE7 | Shop at ECS Tuning | ||||||
| 04 | Tlumič nárazů zadní pravý | 1 | 51125A69DE8 | Shop at ECS Tuning | ||||||
