Vložka podběhu kola for BMW MINI F66 JCW

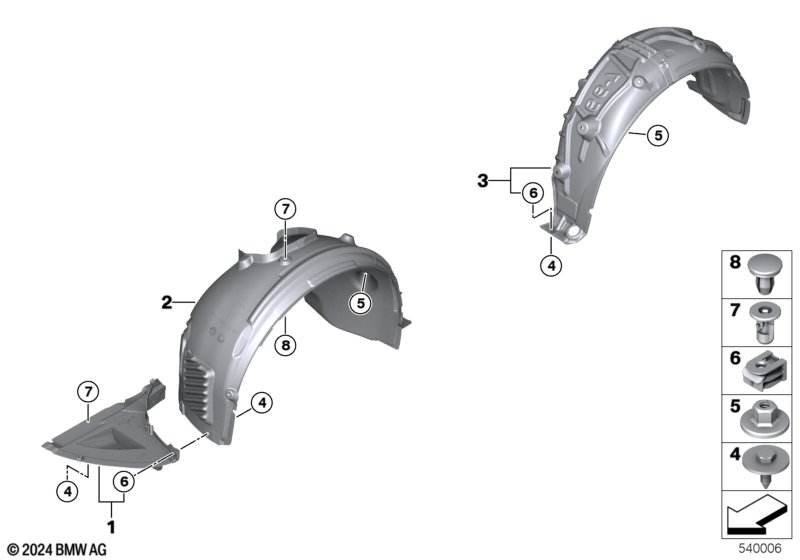

This Vložka podběhu kola technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kryt podběh kola dolní levý | JCW | 1 | 51719629229 | Shop at ECS Tuning | |||||
| 01 | Kryt podběh kola dolní pravý | JCW | 1 | 51719629230 | Shop at ECS Tuning | |||||
| 02 | Kryt podběh kola přední pravý | BKS | 1 | 51719629094 | Shop at ECS Tuning | |||||
| 02 | Kryt podběh kola přední levý | BKS / AKMK | 1 | 51719629227 | Shop at ECS Tuning | |||||
| 03 | Kryt podběh kola zadní levý | 1 | 51719629089 | Shop at ECS Tuning | ||||||
| 03 | Kryt podběh kola zadní pravý | 1 | 51719629090 | Shop at ECS Tuning | ||||||
| 04 | Šestihranný šroub | TS5X20 SW8 D=22 | 28 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Plastová uzavřená matice s podložkou | D=22MM | 16 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Svorka C plastová matice | TS5 | 14 | 07147311312 | Shop at ECS Tuning | |||||
| 07 | Rozpěrná matice | L=18.4, DMAX=18 | 12 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Rozpěrný nýt | 2 | 07147136172 | $0.38 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F66 JCW Vložka podběhu kola?
- This technical diagram illustrates the Vložka podběhu kola within the Výbava vozidla group for the MINI F66 JCW. It provides a detailed exploded view of the components, identifying key parts such as the Kryt podběh kola dolní levý (Part #51719629229).
- Which models use the hardware listed in this Vložka podběhu kola?
- The hardware and components featured in the Vložka podběhu kola are specific to the MINI F66 JCW. These technical specifications ensure that parts like the Kryt podběh kola dolní levý (51719629229) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vložka podběhu kola assembly?
- Each item in the Vložka podběhu kola corresponds to the numbered list below the illustration. For the MINI F66 JCW, you can identify the Kryt podběh kola dolní levý by locating its position on the schematic, which then links to the official BMW part number 51719629229 for the Výbava vozidla section.
