Vedení vzduchu for BMW MINI F56 LCI Cooper

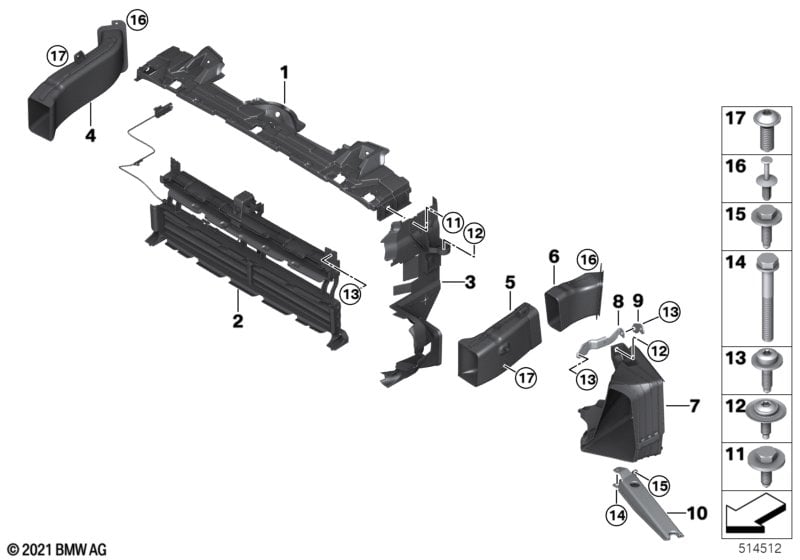

This Vedení vzduchu technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI Cooper. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vedení vzduchu chladič horní | 1 | 51745A01610 | Shop at ECS Tuning | ||||||
| Pro vozidla s JCW aerodynamická sada |
S3A1A=Ne |
|||||||||
| 03 | Vedení vzduchu chladič přední levé | 1 | 51745A01615 | Shop at ECS Tuning | ||||||
| 03 | Vedení vzduchu chladič přední pravé | 1 | 51745A01616 | Shop at ECS Tuning | ||||||
| Pro vozidla s JCW aerodynamická sada |
S3A1A=Ano |
|||||||||
| 03 | Vedení vzduchu chladič přední levé | 1 | 51745A01621 | Shop at ECS Tuning | ||||||
| 03 | Vedení vzduchu chladič přední pravé | 1 | 51745A01622 | Shop at ECS Tuning | ||||||
| 11 | Šestihranný šroub samojisticí | M6 | 2 | 07146961201 | $1.17 | Shop at ECS Tuning | ||||
| 12 | Čočkový šroub s podložkou | M6X20 | 4 | 07/2023 | 07147406384 | UKONČENO | Shop at ECS Tuning | |||
| 12 | Čočkový šroub s pružnou podložkou | M6X20 | 4 | 07145A48F73 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
