BMW sport. sedadlo rám sedadla elektr. for BMW 7 Series E32 730i (1990)

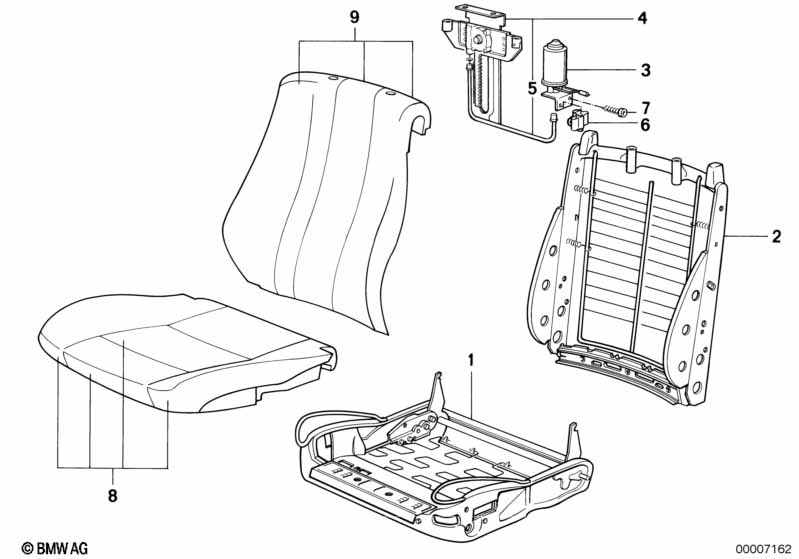

This BMW sport. sedadlo rám sedadla elektr. technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 750 Ausführung 751 Ausführung 752 |
|||||||||
| 01 | Rám sedadla se servopohony | RHW/BOSCH | 2 | 52101964591 | $817.63 | UKONČENO | Shop at ECS Tuning | |||
| Pro vozidla s Paměť vhodné jen pro stranu řidiče |
=Ano |
|||||||||
| 01 | Rám sedadla se servopohony | RHW/BOSCH | 1 | 52101964227 | $905.23 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Rám opěradla | 2 | 52101964592 | $149.61 | Shop at ECS Tuning | |||||
| 03 | Servopohon hlavová opěrka | 2 | 52101379411 | $130.25 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Převodovka uchycení hlavové opěrky | 2 | 52101964246 | $157.89 | Shop at ECS Tuning | |||||
| Pro vozidla s Paměť |
=Ano |
|||||||||
| 04 | Převodovka uchycení hlavové opěrky | 1 | 52108126164 | $213.72 | Shop at ECS Tuning | |||||
| 05 | Hřídel | 2 | 52101889108 | $22.29 | UKONČENO | Shop at ECS Tuning | ||||
| Pro vozidla s Paměť |
=Ano |
|||||||||
| 06 | Regul. hlav.op. výška sed.-hloubka-sklon | 1 | 61311379094 | $62.85 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Šroub s čočkovitou hlavou | M5X12-Z3-ZN | 6 | 07119906816 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Uložení sedadlo přední | 2 | 52108101803 | $142.37 | Shop at ECS Tuning | |||||
| 09 | Uložení opěradlo přední | 2 | 52108101801 | $156.59 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
