BMW sportovní sedadlo potah for BMW 8 Series E31 850Ci (1994)

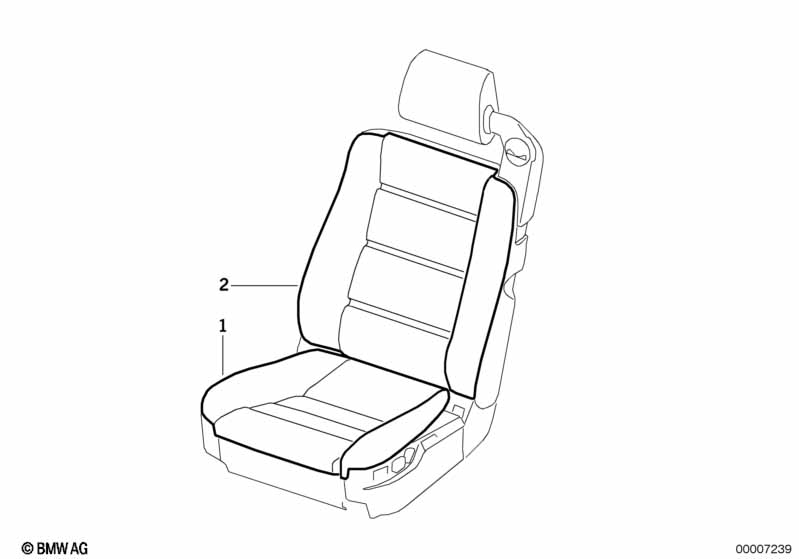

This BMW sportovní sedadlo potah technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 800 | |||||||||
| 01 | Potah sedadlo látka | 0346 ANTHRAZIT | 2 | 09/1996 | 52108152552 | $262.26 | UKONČENO, +core | Shop at ECS Tuning | ||
| 01 | Potah sedadlo látka | 0347 SILBERGRAU | 2 | 09/1996 | 52108152553 | $262.26 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Potah sedadlo látka | 0348 ULTRAMARIN | 2 | 09/1996 | 52108152554 | $262.26 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Potah sedadlo látka | 0349 PERGAMENT | 2 | 09/1996 | 52108152555 | $262.26 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Potah sedadlo látka | 0350 BRASIL | 2 | 09/1996 | 52108152556 | $262.26 | UKONČENO | Shop at ECS Tuning | ||
| pouze společně s | ||||||||||
| -- | Uložení sedadlo přední | 2 | 09/1996 | 52108152232 | $168.29 | UKONČENO | Shop at ECS Tuning | |||
| ONLY APPLIES TO COLOR-LINE UPHOLSTERY LEATHER WALKNAPPA |
||||||||||
| 01 | Potah sedadlo kůže | 0488 BARBADOSGR | 2 | 09/1992 | 52108160694 | $761.67 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Potah sedadlo kůže | 0489 TOBAGOBLAU | 2 | 09/1992 | 52108160696 | $828.27 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Potah sedadlo kůže | 0490 CALYPSOROT | 2 | 09/1992 | 52108160698 | $761.67 | UKONČENO | Shop at ECS Tuning | ||
| Čalounická kůže Walknappa | ||||||||||
| 01 | Potah sedadlo kůže | 0226 SCHWARZ | 2 | 06/1991 | 52108152558 | $828.27 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Potah sedadlo kůže | 0351/0352SILBER | 2 | 06/1991 | 52108152559 | $828.27 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Potah sedadlo kůže | 0353/0354SIL-HE | 2 | 06/1991 | 52108152560 | $828.27 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Potah sedadlo kůže | 0355 ULTRAMARIN | 2 | 06/1991 | 52108152561 | $825.84 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Potah sedadlo kůže | 0356/0357PERGAM | 2 | 06/1991 | 52108152562 | $825.84 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Potah sedadlo kůže | 0358/0359PER-HE | 2 | 06/1991 | 52108152563 | $825.84 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Potah sedadlo kůže | 0360 BRASIL | 2 | 06/1991 | 52108152564 | $825.84 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Potah sedadlo kůže | 0361KARMESINROT | 2 | 06/1991 | 52108152565 | $825.84 | UKONČENO | Shop at ECS Tuning | ||
| Čalounická kůže Buffalo | ||||||||||
| 01 | Potah sedadlo kůže | 0180 ANTHRAZIT | 2 | 06/1991 | 52108152567 | $825.84 | UKONČENO, +core | Shop at ECS Tuning | ||
| 01 | Potah sedadlo kůže | 0362 BRASIL | 2 | 06/1991 | 52108152568 | $825.84 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Potah opěradlo látka | 0346 ANTHRAZIT | 2 | 06/1991 | 09/1996 | 52108152573 | $262.26 | UKONČENO | Shop at ECS Tuning | |
| 02 | Potah opěradlo látka | 0347 SILBERGRAU | 2 | 06/1991 | 09/1996 | 52108152574 | $262.26 | UKONČENO | Shop at ECS Tuning | |
| 02 | Potah opěradlo látka | 0348 ULTRAMARIN | 2 | 06/1991 | 09/1996 | 52108152575 | $262.26 | UKONČENO | Shop at ECS Tuning | |
| 02 | Potah opěradlo látka | 0349 PERGAMENT | 2 | 06/1991 | 09/1996 | 52108152576 | $262.26 | UKONČENO | Shop at ECS Tuning | |
| 02 | Potah opěradlo látka | 0350 BRASIL | 2 | 06/1991 | 09/1996 | 52108152577 | $262.26 | UKONČENO | Shop at ECS Tuning | |
| ONLY APPLIES TO COLOR-LINE UPHOLSTERY LEATHER WALKNAPPA |
||||||||||
| 02 | Potah opěradlo kůže | 0488 BARBADOSGR | 2 | 09/1992 | 52108160700 | $761.67 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Potah opěradlo kůže | 0489 TOBAGOBLAU | 2 | 09/1992 | 52108160702 | $1004.68 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Potah opěradlo kůže | 0490 CALYPSOROT | 2 | 09/1992 | 52108160704 | $761.67 | UKONČENO | Shop at ECS Tuning | ||
| Čalounická kůže Walknappa | ||||||||||
| 02 | Potah opěradlo kůže | 0226,0525 SCHW | 2 | 06/1991 | 52108152582 | $1004.68 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Potah opěradlo kůže | 0351/0352SILBER | 2 | 06/1991 | 52108152583 | $825.84 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Potah opěradlo kůže | 0353/0354SIL-HE | 2 | 06/1991 | 52108152584 | $1004.68 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Potah opěradlo kůže | 0355ULTRAMARIN | 2 | 06/1991 | 52108152585 | $825.84 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Potah opěradlo kůže | 0356/0357PERGAM | 2 | 06/1991 | 52108152586 | $825.84 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Potah opěradlo kůže | 0358/0359PER-HE | 2 | 06/1991 | 52108152587 | $825.84 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Potah opěradlo kůže | 0360 BRASIL | 2 | 06/1991 | 52108152588 | $825.84 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Potah opěradlo kůže | 0361KARMESINROT | 2 | 06/1991 | 52108152589 | $825.84 | UKONČENO | Shop at ECS Tuning | ||
| Čalounická kůže Buffalo | ||||||||||
| 02 | Potah opěradlo kůže | 0180 ANTHRAZIT | 2 | 06/1991 | 52108152579 | $825.84 | UKONČENO, +core | Shop at ECS Tuning | ||
| 02 | Potah opěradlo kůže | 0362 BRASIL | 2 | 06/1991 | 52108152580 | $903.96 | UKONČENO | Shop at ECS Tuning | ||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
