Elektr. nastav. sedadlo jednotlivé díly for BMW 8 Series E31 840i (1996)

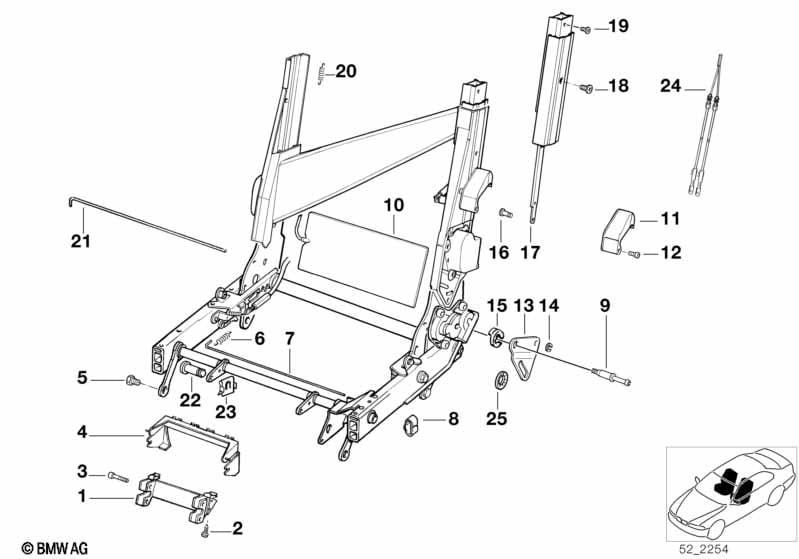

This Elektr. nastav. sedadlo jednotlivé díly technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Uchycení | 2 | 52108128519 | $44.36 | +core | Shop at ECS Tuning | ||||
| 02 | Šroub Torx | ISA M5X12 | X | 52108123246 | $0.46 | Shop at ECS Tuning | ||||
| 03 | Šroub | M5,5X25 | 4 | 52108128399 | $0.39 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Lišta konektoru | 1 | 52108128520 | $68.91 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Šroub s čočkovitou hlavou | 8 | 52108123244 | $1.14 | Shop at ECS Tuning | |||||
| 06 | Pružina | 2 | 52108128540 | $0.82 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Torzní tyč | 1 | 52108128522 | $6.25 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Svorka | 6 | 52108128510 | $0.38 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Šroub | 2 | 52108128575 | $4.85 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Bederní opěrka | 2 | 52101940882 | $267.57 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Páka levá | CHROM | 1 | 07/1992 | 52108152827 | $20.47 | Shop at ECS Tuning | |||
| 11 | Páka pravá | CHROM | 1 | 07/1992 | 52108152828 | $20.47 | Shop at ECS Tuning | |||
| 12 | Šroub | M5X12 | 2 | 52108128541 | $1.15 | Shop at ECS Tuning | ||||
| 13 | Páka levá | 1 | 52108128573 | $13.55 | Shop at ECS Tuning | |||||
| 13 | Páka pravá | 1 | 52108128574 | $13.55 | Shop at ECS Tuning | |||||
| 14 | Pojistný kroužek | 2 | 52108128576 | $0.41 | Shop at ECS Tuning | |||||
| 15 | Pojistná podložka | 2 | 52108128577 | $0.23 | Shop at ECS Tuning | |||||
| 16 | Čep | 2 | 52108128578 | $1.66 | UKONČENO | Shop at ECS Tuning | ||||
| 17 | Kolejnice přední levá | 1 | 52101940879 | $73.45 | UKONČENO | Shop at ECS Tuning | ||||
| 17 | Kolejnice přední pravá | 1 | 52101940880 | $42.05 | UKONČENO | Shop at ECS Tuning | ||||
| 18 | Šroub | M 8X10 | 2 | 52108152274 | $1.22 | UKONČENO | Shop at ECS Tuning | |||
| 19 | Šroub | M 5X8 | 2 | 52101970656 | $0.23 | UKONČENO | Shop at ECS Tuning | |||
| 20 | Pružina | 2 | 52108128532 | $1.32 | UKONČENO | Shop at ECS Tuning | ||||
| 21 | Torzní tyč levá | 1 | 52108128515 | $7.64 | UKONČENO | Shop at ECS Tuning | ||||
| 21 | Torzní tyč pravá | 1 | 52108128516 | $7.64 | UKONČENO | Shop at ECS Tuning | ||||
| 21 | Torzní tyč pravá | 1 | 52108128516 | $7.64 | UKONČENO | Shop at ECS Tuning | ||||
| 22 | Čep | 4 | 52108118124 | $1.34 | UKONČENO | Shop at ECS Tuning | ||||
| 23 | Pojistná podložka | 4 | 52108123933 | $0.82 | UKONČENO | Shop at ECS Tuning | ||||
| 24 | Bovden | 1 | 52108128531 | $22.36 | Shop at ECS Tuning | |||||
| 25 | Pojistný kroužek | 1 | 52108152276 | $0.41 | Shop at ECS Tuning |
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
- Ukončeno = Díl se již nevyrábí.
