Sedadlo př.vod.lišta sed. el./jedn. díly for BMW 8 Series E31 850Ci (1994)

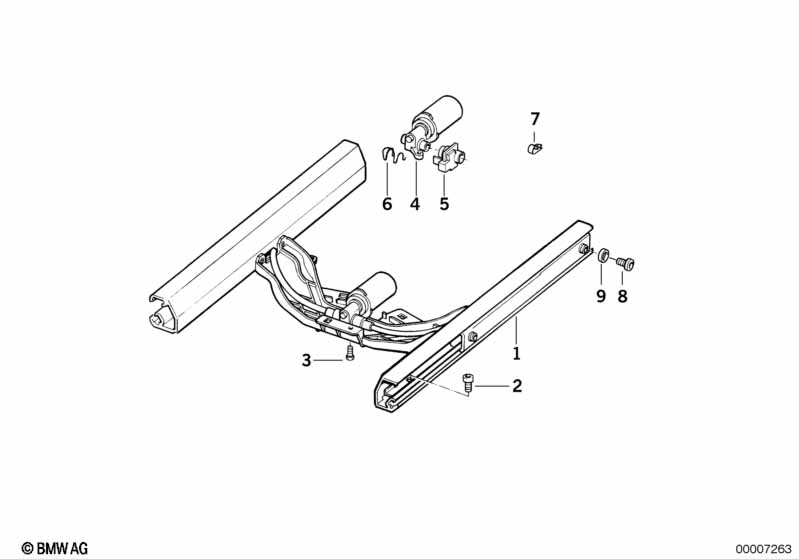

This Sedadlo př.vod.lišta sed. el./jedn. díly technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 800 | |||||||||
| 01 | Vodicí lišta sedadla | 2 | 52101940883 | $743.07 | UKONČENO | Shop at ECS Tuning | ||||
| Pro vozidla s Paměť |
=Ano |
|||||||||
| 01 | Vodicí lišta sedadla | 2 | 52108118128 | $837.43 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Šroub s válcovou hlavou | 8 | 52108128264 | $1.32 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Šestihranný šroub | M5X12-8.8 ZN | 2 | 07119913231 | $1.42 | Shop at ECS Tuning | ||||
| 04 | Servopohon podélné nastavení | 2 | 67311392132 | $194.03 | Shop at ECS Tuning | |||||
| Pro vozidla s Paměť |
=Ano |
|||||||||
| 05 | Regulátor | 2 | 61311383069 | $60.38 | Shop at ECS Tuning | |||||
| 06 | Pružina | 2 | 52108128392 | $0.57 | Shop at ECS Tuning | |||||
| Pro vozidla s Paměť |
=Ano |
|||||||||
| 06 | Pružina | 2 | 52108128589 | $3.93 | Shop at ECS Tuning | |||||
| 07 | Spona | 2 | 52108128395 | $0.71 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Šroub s čočkovitou hlavou | 4 | 52108123244 | $1.14 | Shop at ECS Tuning | |||||
| 09 | Vymezovací podložka | 4 | 52108123918 | $0.42 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
