Zadní díl for BMW R45-R65LS..78-85 R45 (1978)

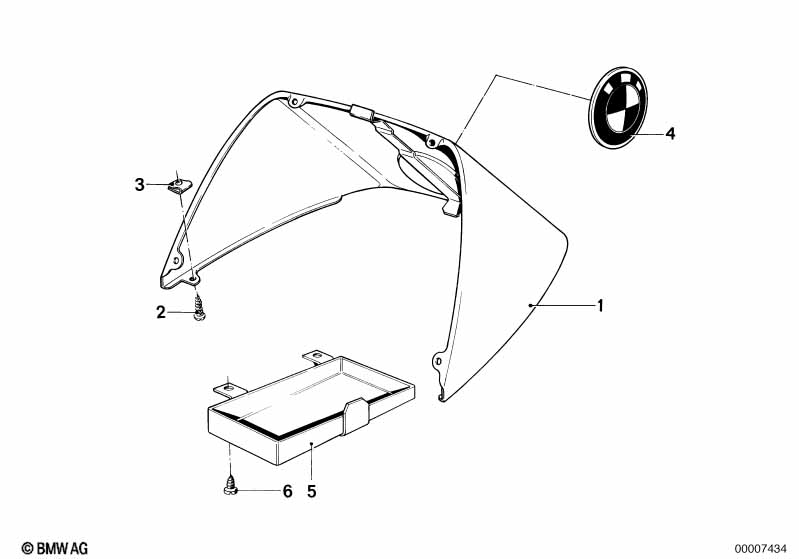

This Zadní díl technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zadní díl základní lak | 1 | 09/1980 | 52531237104 | $28.02 | Shop at ECS Tuning | ||||
| 02 | Šroub | 4 | 09/1980 | 07119904170 | $0.17 | Shop at ECS Tuning | ||||
| 02 | Šestihranný šroub na plech | ST4,2X13-C | 4 | 09/1980 | 07119916804 | $0.09 | Shop at ECS Tuning | |||
| 03 | Matice na plech | ST4,2-1-ZNS3 | 4 | 09/1980 | 07129904220 | $0.09 | Shop at ECS Tuning | |||
| 04 | Plaketa | D=60MM | 1 | 52537686464 | $11.28 | +core | Shop at ECS Tuning | |||
| 05 | Klapka | 1 | 08/1979 | 52531234719 | $2.67 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Šroub | 2 | 08/1979 | 07119904170 | $0.17 | Shop at ECS Tuning |
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R45 Zadní díl?
- This technical diagram illustrates the Zadní díl within the Sedadla a sedačka group for the R45-R65LS..78-85 R45 produced during 1978. It provides a detailed exploded view of the components, identifying key parts such as the Zadní díl základní lak (Part #52531237104).
- Which models use the hardware listed in this Zadní díl?
- The hardware and components featured in the Zadní díl are specific to the R45-R65LS..78-85 R45 produced during 1978. These technical specifications ensure that parts like the Zadní díl základní lak (52531237104) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zadní díl assembly?
- Each item in the Zadní díl corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R45, you can identify the Zadní díl základní lak by locating its position on the schematic, which then links to the official BMW part number 52531237104 for the Sedadla a sedačka section.
