Sedačka for BMW R45-R65LS..78-85 R65LS (1983)

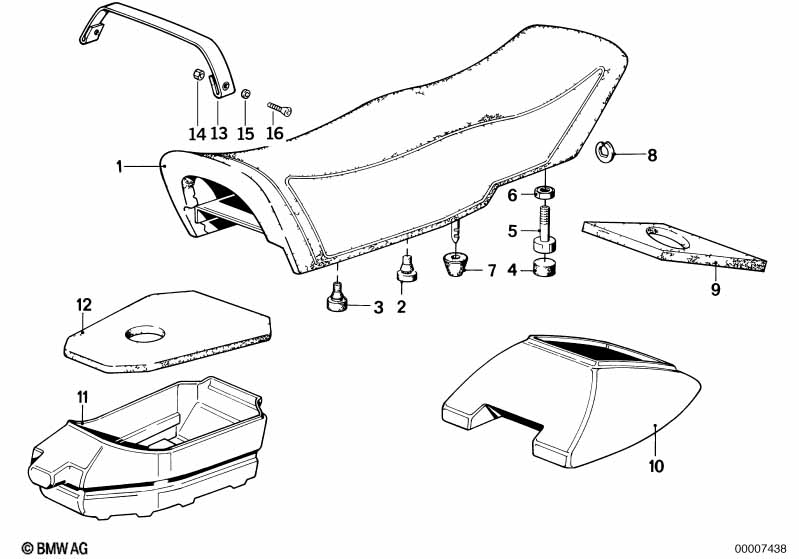

This Sedačka technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sedačka | 1 | 52531242240 | $447.68 | UKONČENO, +core | Shop at ECS Tuning | ||||
| Pro vozidla s Provedení Francie nebo Provedení Japonsko |
Y741A=Ano Y742A=Ano |
|||||||||
| 01 | Sedačka | 1 | 52531242795 | $447.68 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Doraz | H=10 | 2 | 52531236128 | $2.80 | Shop at ECS Tuning | ||||
| 03 | Vzpěra | H=16 | 2 | 52531232904 | $2.80 | Shop at ECS Tuning | ||||
| 04 | Doraz | 2 | 52531451524 | $0.72 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Šroub s válcovou hlavou | M8X40-8.8-ZNS3 | 2 | 07119902984 | $1.93 | Shop at ECS Tuning | ||||
| 05 | Šroub s válcovou hlavou | M8X40-8.8-ZNS3 | 2 | 07119902984 | $1.93 | Shop at ECS Tuning | ||||
| 06 | Šestihranná matice | M8-05-ZNNIV SI | 2 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 07 | Uložení | 1 | 52532301867 | UKONČENO | Shop at ECS Tuning | |||||
| 08 | Upínací plech | D=6MM | 2 | 07129934319 | $1.33 | Shop at ECS Tuning | ||||
| 09 | Těsnění | 1 | 52531242254 | $1.66 | Shop at ECS Tuning | |||||
| 10 | Odkládací přihrádka | 1 | 52531242253 | $21.70 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Skříň na nářadí | 1 | 52531242167 | $74.11 | Shop at ECS Tuning | |||||
| 12 | Těsnění | 1 | 52531242168 | $21.70 | UKONČENO | Shop at ECS Tuning | ||||
| Pro vozidla s Provedení Francie nebo Provedení Japonsko |
Y741A=Ano Y742A=Ano |
|||||||||
| 13 | Přídržný řemen | 1 | 52531242796 | UKONČENO | Shop at ECS Tuning | |||||
| 15 | Dutý kotouč | 2 | 52531231327 | $2.71 | UKONČENO | Shop at ECS Tuning | ||||
| 16 | Zápustný šroub | M6X22-4.8-H-ZNS | 2 | 07119903522 | $1.74 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
