Sedadlo zadní rám sedadla průchod for BMW 3 Series E92 LCI 325i (2013)

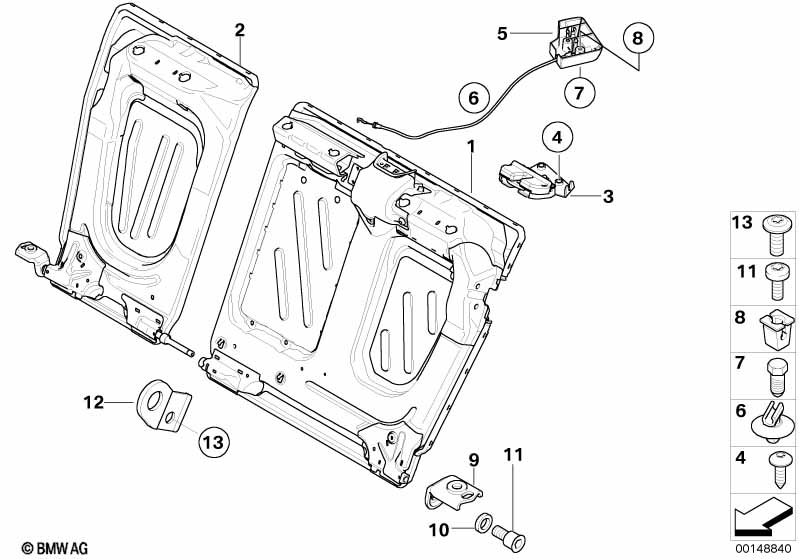

This Sedadlo zadní rám sedadla průchod technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rám opěradlo levý | 1 | 52207119820 | $341.01 | Shop at ECS Tuning | |||||
| Pro vozidla s Vak na lyže |
S464A=Ano |
|||||||||
| 01 | Rám opěradlo levý | 1 | 52207165082 | $341.01 | Shop at ECS Tuning | |||||
| 02 | Rám opěradlo pravý | 1 | 52207146973 | $227.34 | Shop at ECS Tuning | |||||
| 03 | Zámek levý | 1 | 52207112863 | $35.49 | +core | Shop at ECS Tuning | ||||
| 03 | Zámek pravý | 1 | 52207112864 | $35.49 | +core | Shop at ECS Tuning | ||||
| 04 | Šestihranný šroub s podložkou | M8X20-ZNS3 | 4 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 05 | Ovládací jednotka levá | 1 | 52207151369 | $32.96 | Shop at ECS Tuning | |||||
| 05 | Ovládací jednotka pravá | 1 | 52207151370 | $32.96 | Shop at ECS Tuning | |||||
| 06 | Kabelové držáky | 4 | 72118177700 | $0.52 | Shop at ECS Tuning | |||||
| 07 | Šestihranný šroub na plech | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Rozpěrná matice | ST 4.8 | 4 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 09 | Úhelník | 2 | 52207118701 | $7.87 | Shop at ECS Tuning | |||||
| 10 | Pouzdro | 2 | 52207134124 | $7.75 | Shop at ECS Tuning | |||||
| 11 | Šroub s válcovou hlavou | M10X22 | 2 | 07147116970 | $1.80 | Shop at ECS Tuning | ||||
| 12 | Konzola uložení střední | 1 | 52207161259 | $6.30 | Shop at ECS Tuning | |||||
| 13 | Šroub s čočkovou hlavou s nákružkem | M10X15 | 2 | 07147161279 | $0.80 | Shop at ECS Tuning | ||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
