Sedadlo přední rám sedadla for BMW MINI Paceman R61 Cooper

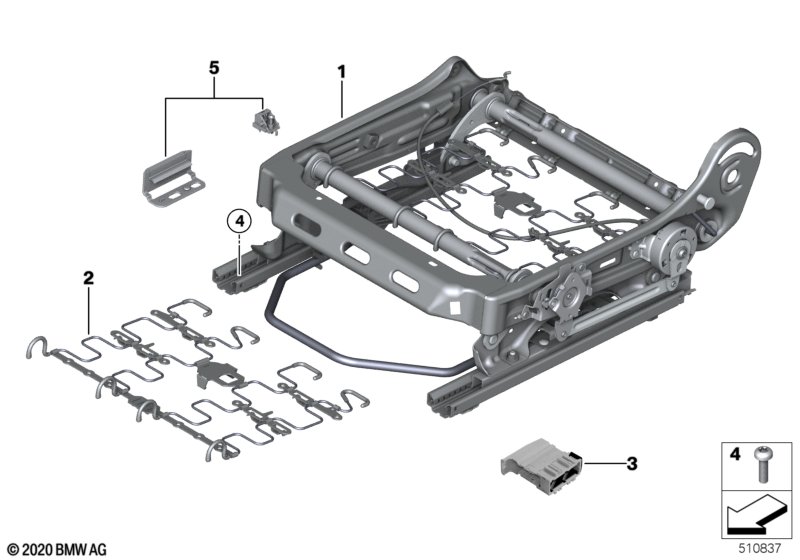

This Sedadlo přední rám sedadla technical drawing provides a detailed breakdown of the assembly for the MINI Paceman R61 Cooper. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Strana řidiče | ||||||||||
| 01 | Mechanika sedadla levá | 1 | 04/2013 | 52107335409 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| 01 | Mechanika sedadla levá | 1 | 04/2013 | 52107335409 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| 01 | Mechanika sedadla levá | 1 | 04/2013 | 52107335409 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| 01 | Mechanika sedadla levá | 1 | 04/2013 | 52107335409 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| 01 | Mechanika sedadla pravá | 1 | 04/2013 | 52107335410 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| 01 | Mechanika sedadla pravá | 1 | 04/2013 | 52107335410 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| 01 | Mechanika sedadla pravá | 1 | 04/2013 | 52107335410 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| 01 | Mechanika sedadla pravá | 1 | 04/2013 | 52107335410 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Šroub s čočkovitou hlavou | M8X40 | 1 | 04/2013 | 07147341897 | Shop at ECS Tuning | ||||
| 01 | Mechanika sedadla levá | 1 | 52107335409 | Shop at ECS Tuning | ||||||
| 01 | Mechanika sedadla pravá | 1 | 52107335410 | Shop at ECS Tuning | ||||||
| 02 | Odpružení rám sedadla | 2 | 52102752616 | $20.24 | Shop at ECS Tuning | |||||
| 03 | Skříň konektoru | 2 | 52102753580 | $4.29 | Shop at ECS Tuning | |||||
| 04 | Šroub s čočkovitou hlavou | M8X40 | 4 | 04/2013 | 07149149258 | $3.05 | Shop at ECS Tuning | |||
| 04 | Šroub s čočkovitou hlavou | M8X40 | 4 | 07147341897 | Shop at ECS Tuning | |||||
| 05 | Polohový spínač strana řidiče | 1 | 52102752671 | $39.38 | Shop at ECS Tuning | |||||
| 05 | Polohový spínač strana spolujezdce | 1 | 52102755847 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Paceman R61 Cooper Sedadlo přední rám sedadla?
- This technical diagram illustrates the Sedadlo přední rám sedadla within the Sedadla group for the MINI Paceman R61 Cooper. It provides a detailed exploded view of the components, identifying key parts such as the Mechanika sedadla levá (Part #52107335409).
- Which models use the hardware listed in this Sedadlo přední rám sedadla?
- The hardware and components featured in the Sedadlo přední rám sedadla are specific to the MINI Paceman R61 Cooper. These technical specifications ensure that parts like the Mechanika sedadla levá (52107335409) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sedadlo přední rám sedadla assembly?
- Each item in the Sedadlo přední rám sedadla corresponds to the numbered list below the illustration. For the MINI Paceman R61 Cooper, you can identify the Mechanika sedadla levá by locating its position on the schematic, which then links to the official BMW part number 52107335409 for the Sedadla section.
