Sedadlo př.opěrka hlavy M sport.sedadlo for BMW 1 Series F70 120 (2025)

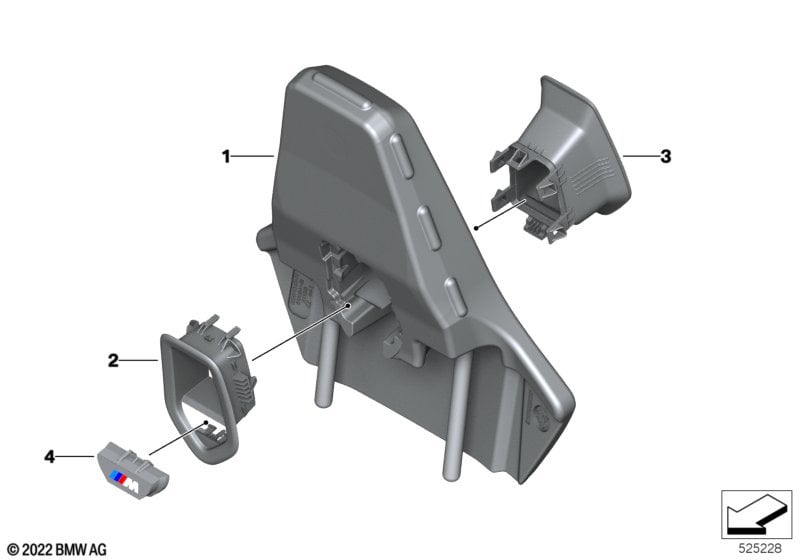

This Sedadlo př.opěrka hlavy M sport.sedadlo technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s M Sport. sedadla pro řidiče a spolujezd. |
S711A=Ano |
||||||||
| 01 | Vložka hlavová opěrka | 2 | 52105A3CBA1 | NoS | Shop at ECS Tuning | |||||
| 02 | Kryt difuzoru vpředu | 2 | 52105A16B39 | NoS | Shop at ECS Tuning | |||||
| 03 | Diffuserblende hinten | 2 | 52105A16B43 | Shop at ECS Tuning | ||||||
| 04 | Znak opěrky hlavy | 2 | 52105A456E2 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Díl není centrálně skladován.)
