Posuvná střecha for BMW 1502-2002tii 2002tii (1973)

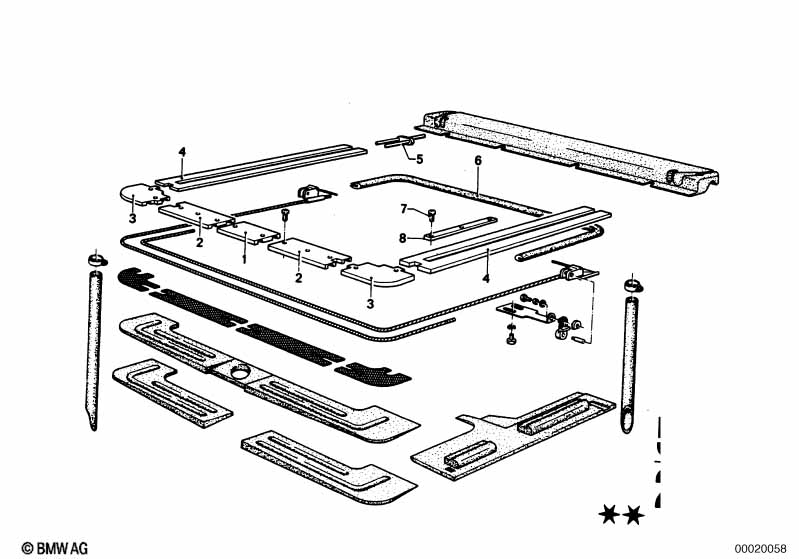

This Posuvná střecha technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kryt střední | 1 | 54129734163 | UKONČENO | Shop at ECS Tuning | |||||
| 01 | Kryt | 1 | 54139734164 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Kryt levý | 1 | 54129734165 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Kryt pravý | 1 | 54129734166 | $72.71 | Shop at ECS Tuning | |||||
| 03 | Kryt levý | 1 | 54129734167 | Shop at ECS Tuning | ||||||
| 03 | Kryt pravý | 1 | 54129734168 | UKONČENO | Shop at ECS Tuning | |||||
| 04 | Vodicí lišta | 1 | 03/1966 | 07/1977 | 54129434119 | $88.46 | UKONČENO | Shop at ECS Tuning | ||
| 04 | Vodicí lišta | 1 | 03/1966 | 07/1977 | 54129434120 | UKONČENO | Shop at ECS Tuning | |||
| 05 | Uchycení | 1 | 54129734118 | $9.94 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Okolek | X | 54129734126 | $1.95 | Shop at ECS Tuning | |||||
| 07 | Zápustný šroub na plech s čočkovou hl. | ST3,9X9,5 | 18 | 07119902454 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Mezikus | 2 | 54129434147 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
