Posuvná a zvedací střecha for BMW MINI R50 Cooper (2000)

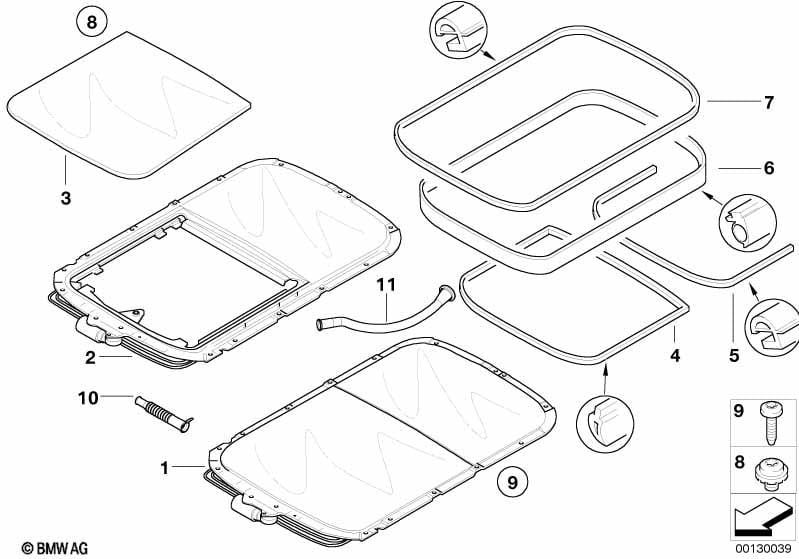

This Posuvná a zvedací střecha technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Posuvná střecha | GRAU | 1 | 54107053424 | $2461.42 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Rám posuvné střechy | 1 | 54107039715 | $1487.27 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Skleněné víko | 1 | 54107039736 | $363.36 | Shop at ECS Tuning | |||||
| 04 | Těsnění víka | 1 | 54107039721 | $36.08 | Shop at ECS Tuning | |||||
| 05 | Těsnění skleněná střecha zadní | 1 | 54107039724 | $36.08 | Shop at ECS Tuning | |||||
| 06 | Těsnění rám posuvná střecha | 1 | 54107039723 | $63.76 | Shop at ECS Tuning | |||||
| 07 | Těsnění výřez střechy | L=3800 +8MM | 1 | 54107178716 | $63.76 | Shop at ECS Tuning | ||||
| 08 | Šroub | M5X8 Z2 | 12 | 54107054336 | $15.25 | Shop at ECS Tuning | ||||
| 09 | Šroub s čočkovitou hlavou | 4X15 | 23 | 54107055524 | $0.22 | Shop at ECS Tuning | ||||
| 10 | Odtoková hadice vody | 2 | 51738197504 | $2.38 | Shop at ECS Tuning | |||||
| 11 | Odtoková hadice vody zadní | L=272 MM | 2 | 54107043425 | $4.32 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
