Skládací střecha hydraulika for BMW MINI Cabrio R52 Cooper (2002)

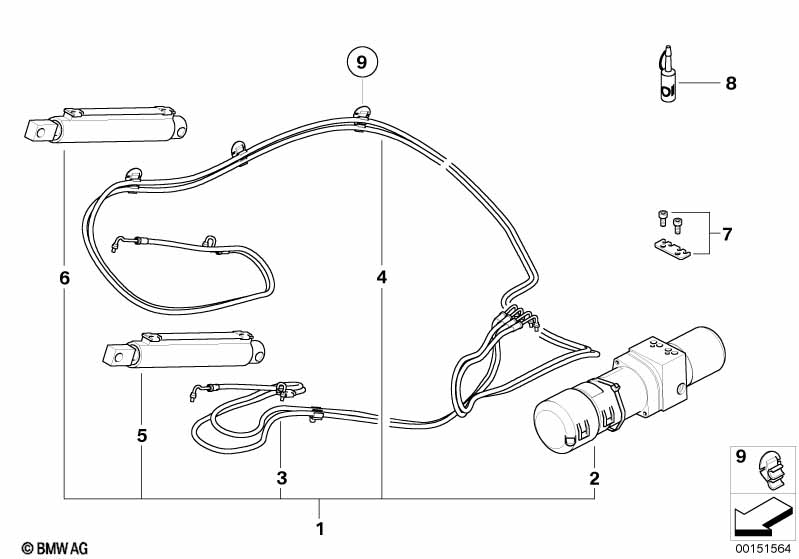

This Skládací střecha hydraulika technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio R52 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydraulická jednotka | 1 | 54347019872 | $887.33 | Shop at ECS Tuning | |||||
| 02 | Hydraulická jednotka | 1 | 54347019872 | $887.33 | Shop at ECS Tuning | |||||
| 03 | Sada hydraulické vedení levé | 1 | 54347162765 | $132.57 | Shop at ECS Tuning | |||||
| 04 | Sada hydraulické vedení pravé | 1 | 54347162766 | $132.57 | Shop at ECS Tuning | |||||
| 05 | Hydraulický válec skládací střecha | 1 | 54347162767 | $271.95 | Shop at ECS Tuning | |||||
| 06 | Hydraulický válec skládací střecha | 1 | 54347162767 | $271.95 | Shop at ECS Tuning | |||||
| 07 | Upevňovací sada | 1 | 54347162769 | $65.46 | Shop at ECS Tuning | |||||
| 08 | Hydr. olej pro skládací střechu/záklopky | 250ML | X | 54340394395 | $32.62 | Shop at ECS Tuning | ||||
| 09 | Svorka vedení | 8 | 54347167041 | $1.10 | Shop at ECS Tuning |
