Skládací střecha clony for BMW MINI Cabrio F57 JCW

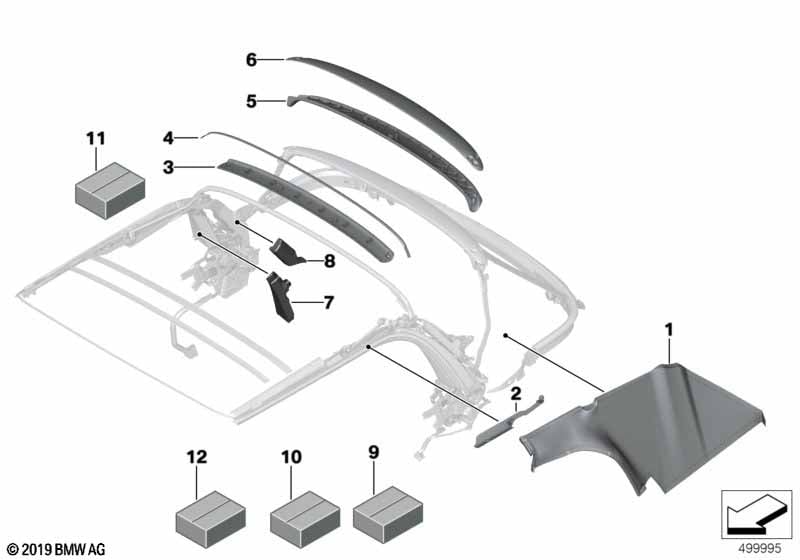

This Skládací střecha clony technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stropnice vlevo | 1 | 54347364831 | Shop at ECS Tuning | ||||||
| 01 | Stropnice vpravo | 1 | 54347364832 | Shop at ECS Tuning | ||||||
| 02 | Clona střední levá | 1 | 54342758089 | $10.98 | Shop at ECS Tuning | |||||
| 02 | Clona střední pravá | 1 | 54342758090 | $6.44 | Shop at ECS Tuning | |||||
| 03 | Kryt zadní | 1 | 54347364801 | Shop at ECS Tuning | ||||||
| 04 | Plstěné pásky | 118X15X1,5 | 1 | 54347364803 | Shop at ECS Tuning | |||||
| 05 | Clona obruč | 1 | 54347364802 | Shop at ECS Tuning | ||||||
| 06 | Střešní oblouk zadní | 1 | 54347364800 | Shop at ECS Tuning | ||||||
| 07 | Clona látka zadní levá | 1 | 54347463727 | Shop at ECS Tuning | ||||||
| 07 | Clona látka zadní pravá | 1 | 54347463728 | Shop at ECS Tuning | ||||||
| 08 | Deformační podložka levá | 1 | 54347463725 | Shop at ECS Tuning | ||||||
| 08 | Deformační podložka pravá | 1 | 54347463726 | Shop at ECS Tuning | ||||||
| 09 | Opr.sada obrysu obložení stropu | 1 | 54347463745 | Shop at ECS Tuning | ||||||
| 10 | Upevňovací sada strop | 1 | 54347463732 | Shop at ECS Tuning | ||||||
| 11 | Upevňovací sada clony | 1 | 54347463735 | Shop at ECS Tuning | ||||||
| 12 | Upevňovací sada napínací lano levé | 1 | 54347365871 | Shop at ECS Tuning | ||||||
| 12 | Upevňovací sada napínací lano pravé | 1 | 54347365872 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F57 JCW Skládací střecha clony?
- This technical diagram illustrates the Skládací střecha clony within the Posuvná střecha / skládací střecha group for the MINI Cabrio F57 JCW. It provides a detailed exploded view of the components, identifying key parts such as the Stropnice vlevo (Part #54347364831).
- Which models use the hardware listed in this Skládací střecha clony?
- The hardware and components featured in the Skládací střecha clony are specific to the MINI Cabrio F57 JCW. These technical specifications ensure that parts like the Stropnice vlevo (54347364831) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Skládací střecha clony assembly?
- Each item in the Skládací střecha clony corresponds to the numbered list below the illustration. For the MINI Cabrio F57 JCW, you can identify the Stropnice vlevo by locating its position on the schematic, which then links to the official BMW part number 54347364831 for the Posuvná střecha / skládací střecha section.
