Kabelová sada sedadlo for BMW 8 Series E31 850Ci (1999)

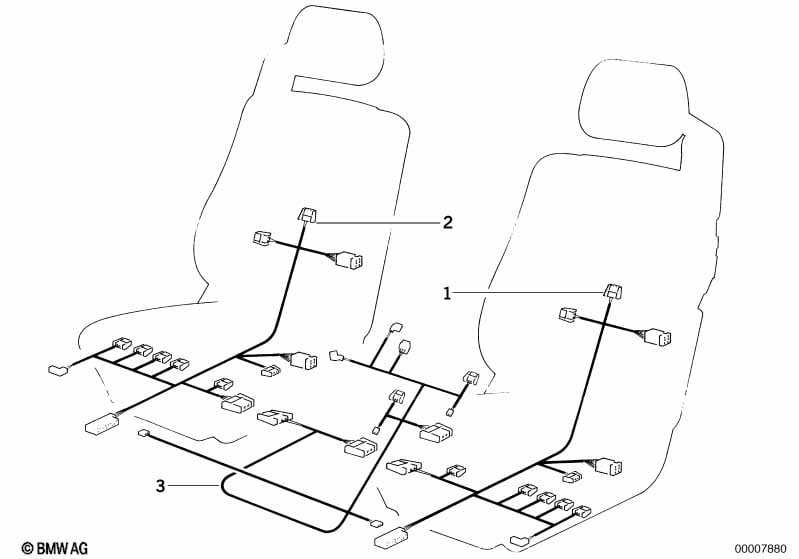

This Kabelová sada sedadlo technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| vhodné jen pro stranu řidiče | ||||||||||
| 01 | Kabelová sada sedadlo | 1 | 09/1993 | 61128367219 | $218.74 | UKONČENO | Shop at ECS Tuning | |||
| Pro vozidla s Paměť vhodné jen pro stranu řidiče |
=Ano |
|||||||||
| 01 | Kabelová sada sedadlo levé | 1 | 09/1993 | 61128367221 | $366.05 | Shop at ECS Tuning | ||||
| Vhodné pouze pro stranu spolujezdce | ||||||||||
| 02 | Kabelová sada sedadlo | 1 | 09/1993 | 61128367216 | $226.72 | Shop at ECS Tuning | ||||
| Pro vozidla s Paměť |
=Ano |
|||||||||
| 03 | Kabel.sada sedad./zrc./sloup.říz. paměť | 1 | 61121392700 | $218.74 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
