Kryt kabelu for BMW 7 Series E38 740i (2001)

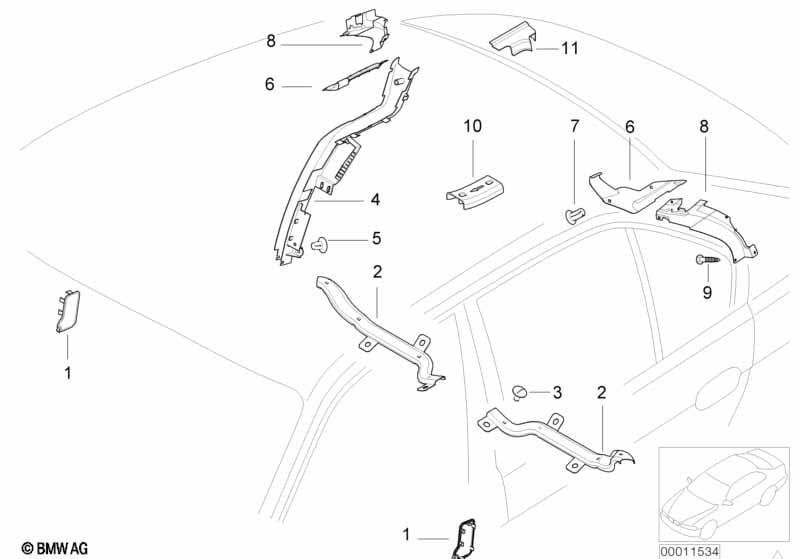

This Kryt kabelu technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kryt B-sloupek levý | 1 | 61138366179 | $3.32 | Shop at ECS Tuning | |||||
| 01 | Kryt B-sloupek pravý | 1 | 61138366180 | $3.32 | Shop at ECS Tuning | |||||
| 02 | Cable cover, floor panel, rear left | 1 | 61138365885 | $4.63 | Shop at ECS Tuning | |||||
| 02 | Cable cover, floor panel, rear right | 1 | 61138365886 | $4.24 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Tlačítko | D=30MM;H=13MM | 3 | 51481906207 | $0.48 | Shop at ECS Tuning | ||||
| 04 | Kryt kabelu podběh kola zadní pravý | 1 | 61138352076 | $7.10 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Tlačítko | L=24 | X | 61131390089 | $0.37 | Shop at ECS Tuning | ||||
| 06 | Cable cover f upper left C-column | 1 | 61138352805 | $2.62 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Cable cover f upper right C-column | 1 | 61138352806 | $2.70 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Zátka | 4 | 51441854624 | $0.39 | Shop at ECS Tuning | |||||
| 08 | Krycí plech C-sloupek dolní levý | 1 | 61138365883 | $5.69 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Krycí plech C-sloupek dolní pravý | 1 | 61138365884 | $6.98 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Šestihranný šroub na plech | L=15 MM | 8 | 65221370813 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Cable cover for floor panel, rear | 1 | 61131384000 | $2.18 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Kryt kabelu vodní drážka pravý | 1 | 61108364948 | $5.03 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
