Kabelový svazek for BMW R45-R65LS..78-85 R65 (1985)

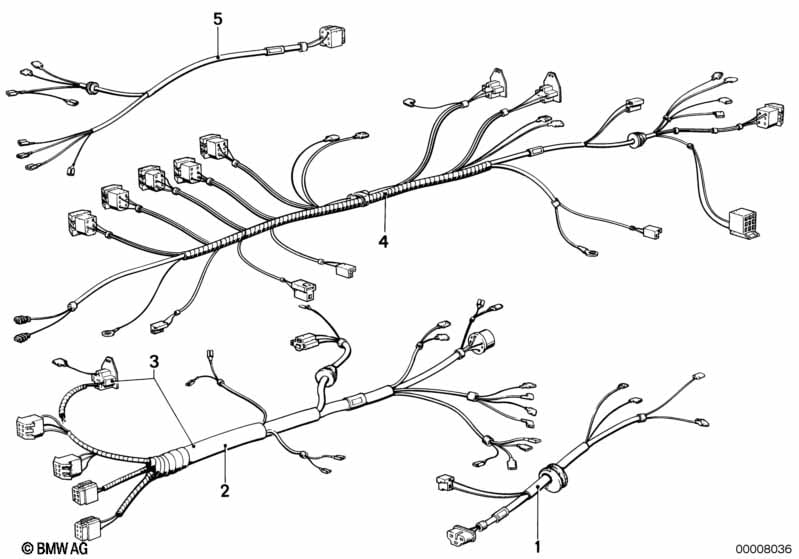

This Kabelový svazek technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kabelový svazek motor | 1 | 61111243646 | $79.95 | +core | Shop at ECS Tuning | ||||
| 04 | Kabelový svazek dílec podvozek | 1 | 09/1980 | 61111244096 | $1150.82 | UKONČENO, +core | Shop at ECS Tuning | |||
| 05 | Kabelový svazek zadní svítilna | 1 | 09/1980 | 61111243703 | $68.70 | +core | Shop at ECS Tuning |
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65 Kabelový svazek?
- This technical diagram illustrates the Kabelový svazek within the Obecná elektrická výstroj vozidla group for the R45-R65LS..78-85 R65 produced during 1985. It provides a detailed exploded view of the components, identifying key parts such as the Kabelový svazek motor (Part #61111243646).
- Which models use the hardware listed in this Kabelový svazek?
- The hardware and components featured in the Kabelový svazek are specific to the R45-R65LS..78-85 R65 produced during 1985. These technical specifications ensure that parts like the Kabelový svazek motor (61111243646) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Kabelový svazek assembly?
- Each item in the Kabelový svazek corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R65, you can identify the Kabelový svazek motor by locating its position on the schematic, which then links to the official BMW part number 61111243646 for the Obecná elektrická výstroj vozidla section.
